Leeson
0.25HP 34 TENV 62 90V DC Gear
Mfr # M1135042.00 | Wright’s # LSN M1135042.00

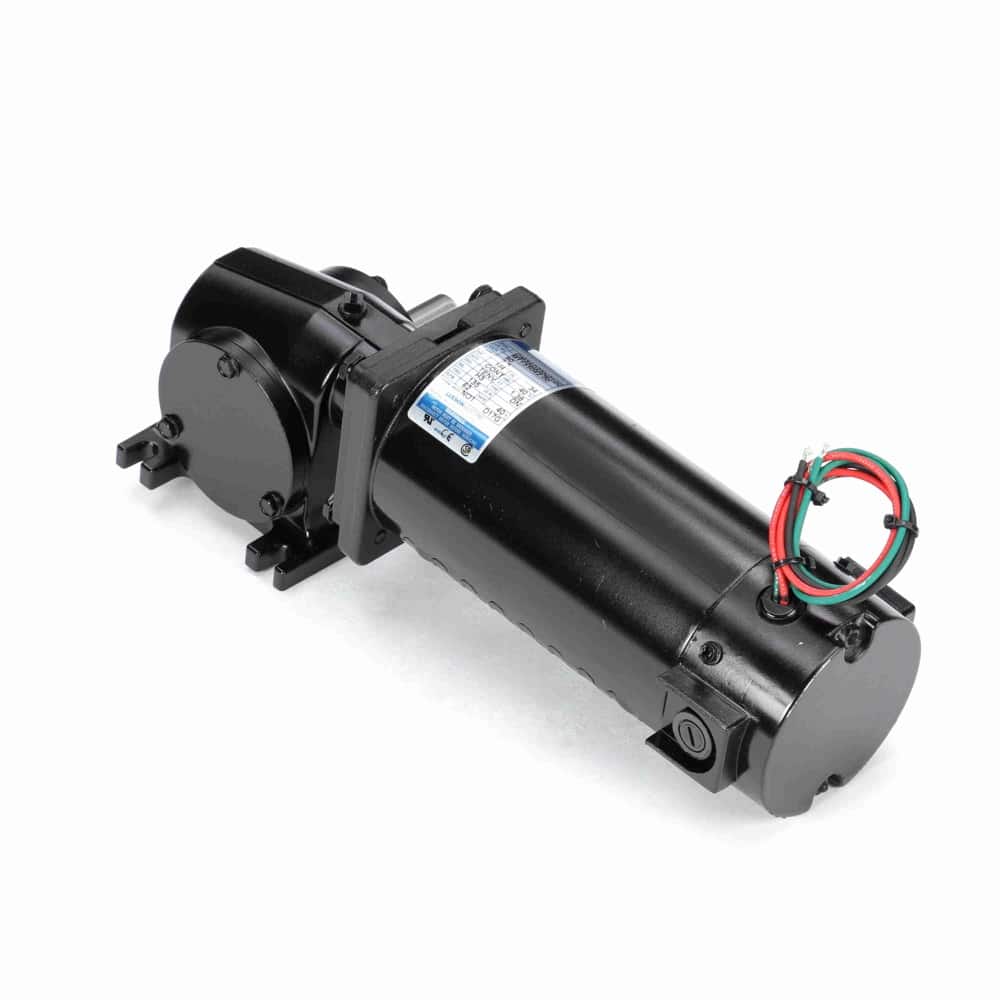

1/4HP Right Angle DC Gear Motor, Phase, 34 Frame, 62 RPM, Speed, Three Phase, 90V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
M1135042.00
Wright's #
LSN M1135042.00
Country of Origin
USA
Specifications
C Dim
12.64"
Electrical Type
Three Phase
Enclosure
TENV
Full Load Efficiency
30.2
Frame
34
HP
0.25 HP
HP2
1/4 HP
Insulation Class
H
kW
0.19kW
Max Ambient
40°C
Mounting Type
Special
Overload Protection
No Protection
Rated Current
2.3
Rated Voltage
90
Rotation
Reversible
RPM
62
Service Factor
1
Shaft Diameter
0.625"
Speed
62
Description
Precision machined aluminum gear housing.
Output shaft is field interchangeable from left hand to right hand style by re-assembly.
Performance matched for continuous duty service.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
