Leeson

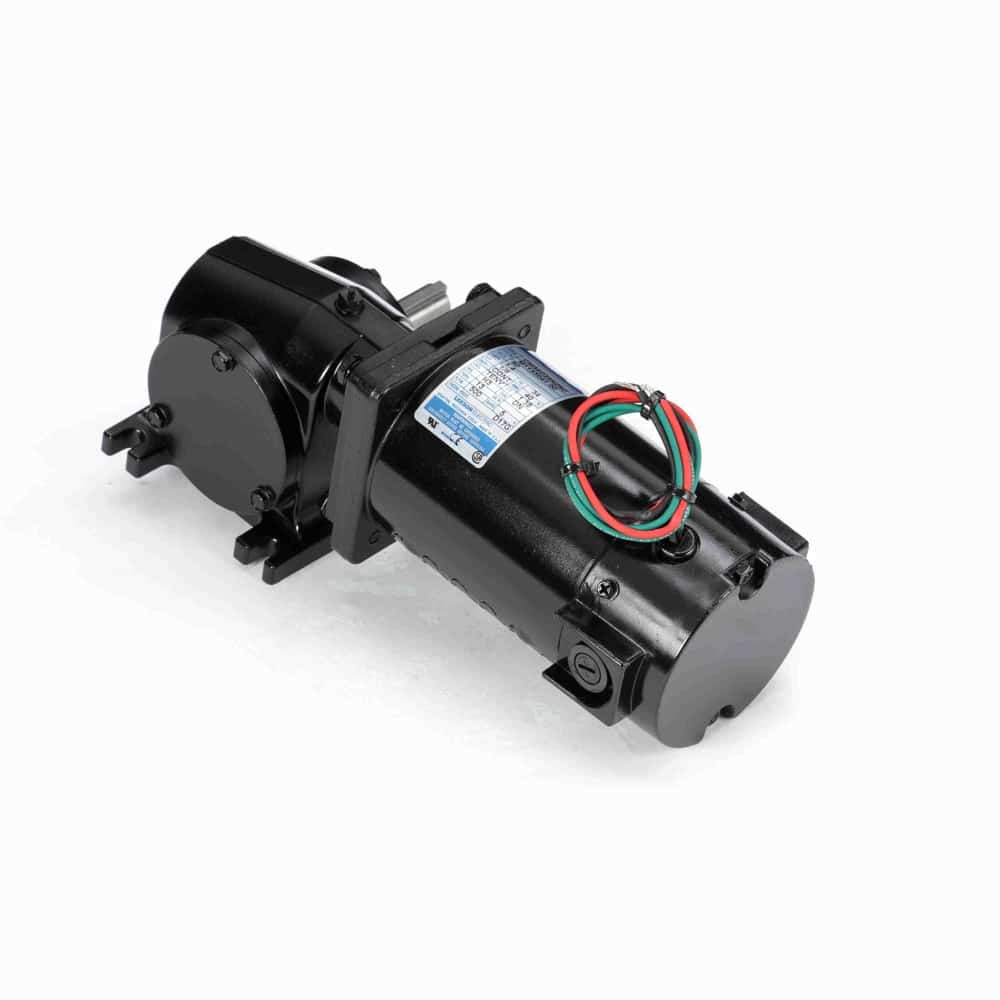

0.13HP 34 TENV 500 90V DC Gear
Mfr # M1135041.00 | Wright’s # LSN M1135041.00
1/8HP Right Angle DC Gear Motor, Phase, 34 Frame, 500 RPM, Speed, Three Phase, 90V, TENV Enclosure
$616.17
Product Information
Brand Leeson
Mfr # M1135041.00
Wright's # LSN M1135041.00
Country of Origin USA
Specifications
C Dim 10.64"
Electrical Type Three Phase
Enclosure TENV
Full Load Efficiency 35.7
Frame 34
HP 0.13 HP
HP2 1/8 HP
Insulation Class H
kW 0.1kW
Max Ambient 40°C
Mounting Type Special
Overload Protection No Protection
Rated Current 1.4
Rated Voltage 90
Rotation Reversible
RPM 500
Service Factor 1
Shaft Diameter 0.625"
Speed 500
Description
Precision machined aluminum gear housing.
Output shaft is field interchangeable from left hand to right hand style by re-assembly.
Performance matched for continuous duty service.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
