Leeson
0.13HP 30 TENV 167 90V DC Gear
Mfr # M1125074.00 | Wright’s # LSN M1125074.00

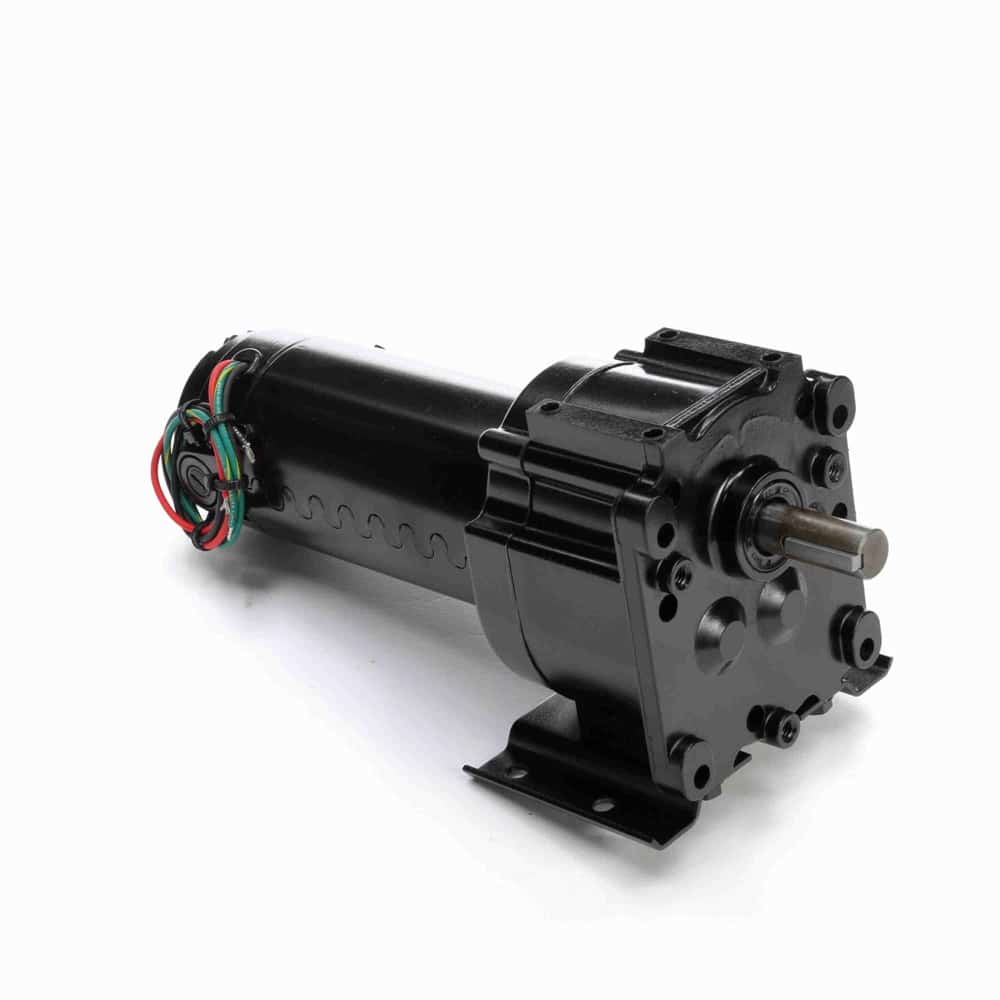

1/8HP Parallel Shaft DC Gear Motor, Phase, 30 Frame, 167 RPM, Speed, Three Phase, 90V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # M1125074.00
Wright's # LSN M1125074.00
Country of Origin USA
Specifications
C Dim 11.45"
Electrical Type Three Phase
Enclosure TENV
Full Load Efficiency 70.7
Frame 30
HP 0.13 HP
HP2 1/8 HP
Insulation Class F
kW 0.1kW
Max Ambient 40°C
Mounting Type Special
Overload Protection No Protection
Rated Current 1.3
Rated Voltage 90
Rotation Reversible
RPM 167
Service Factor 1
Shaft Diameter 0.625"
Speed 167
Description
Performance matched for continuous duty service.
Precision machined in-line steel gears.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
Output shafts have needle bearings to handle high load capacities.
