Leeson
0.13HP 31 TENV 1750 90V DC
Mfr # M1120027.00 | Wright’s # LSN M1120027.00

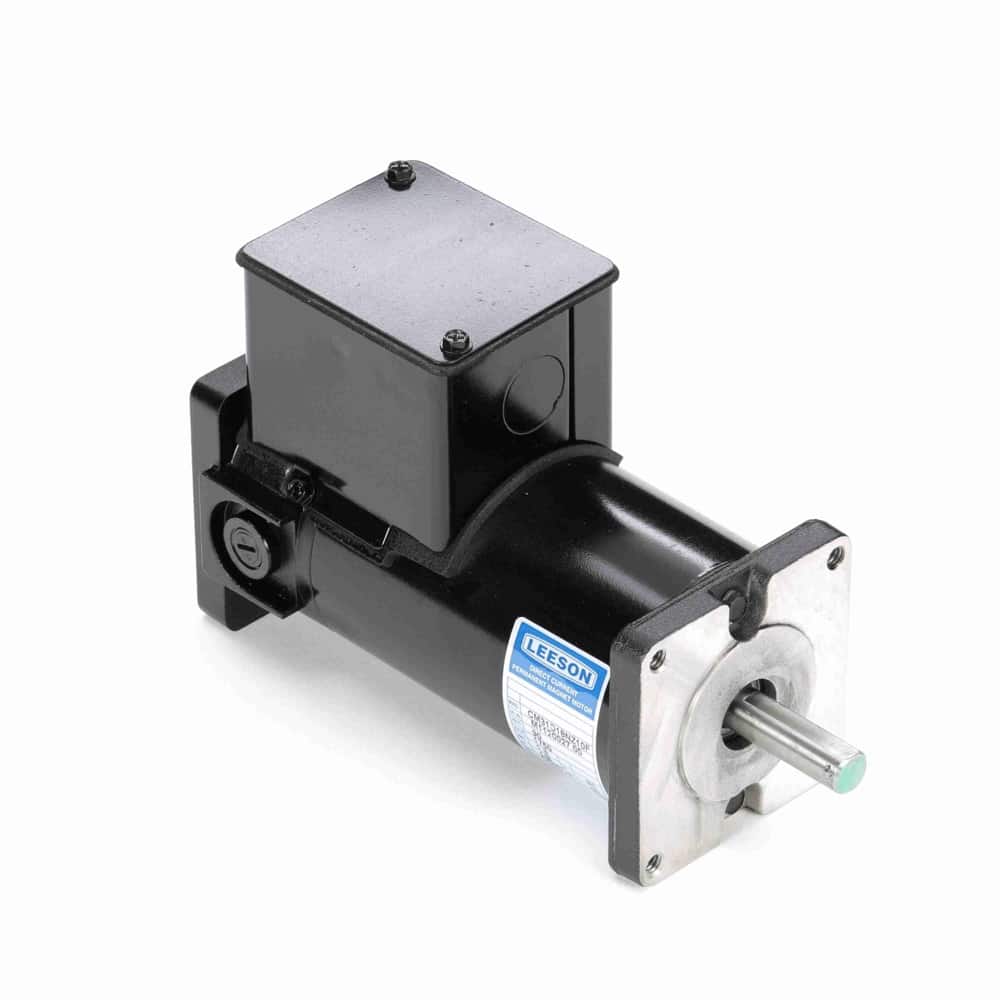

1/8HP Sub-Fractional DC Motor, 31 Frame, 1750 RPM, Three Phase, 90V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # M1120027.00
Wright's # LSN M1120027.00
Country of Origin USA
Specifications
C Dim 8.45"
Electrical Type Three Phase
Enclosure TENV
Full Load Efficiency 73
Frame 31
HP 0.13 HP
HP2 1/8 HP
Insulation Class H
kW 0.1kW
Max Ambient 40°C
Mounting Type Round
Overload Protection No Protection
Rated Current 1.3
Rated Voltage 90
Rotation Reversible
RPM 1750
Service Factor 1.3
Shaft Diameter 0.5"
Speed 1750
Description
Compact and space saving design.
External access to brushes supprots easy replacement for prolonged motor life.
Double-shielded ball bearings provide longer service life.
Reversible rotation allows greater flexibility within the application.
High starting torque on start-up, to achieve a higher starting load required in sub-fractional applications.
