Leeson
0.06HP 25 TENV 500 90V DC Gear
Mfr # M1115022.00 | Wright’s # LSN M1115022.00

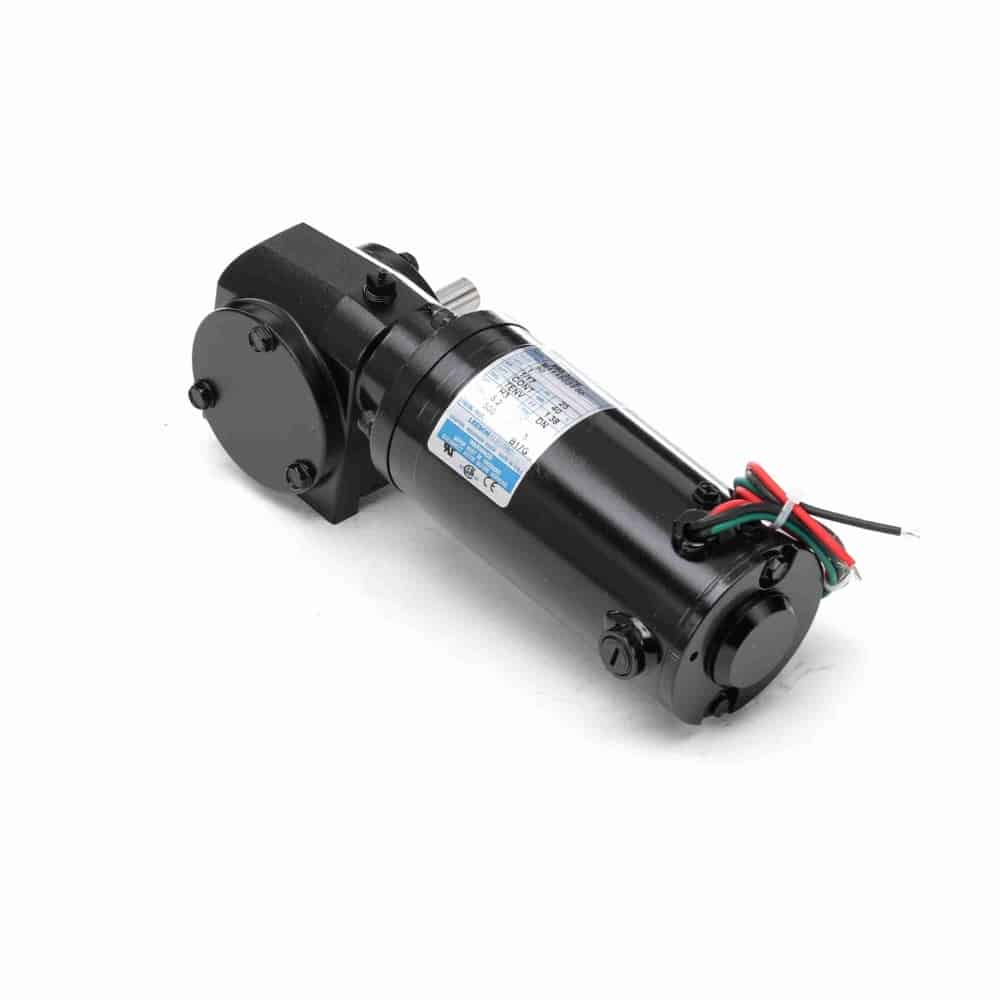

1/15HP Right Angle DC Gear Motor, Phase, 25 Frame, 500 RPM, Speed, Three Phase, 90V, TENV Enclosure
$534.77
Product Information
Brand
Leeson
Mfr #
M1115022.00
Wright's #
LSN M1115022.00
Country of Origin
USA
Specifications
C Dim
8.8"
Electrical Type
Three Phase
Enclosure
TENV
Full Load Efficiency
25.9
Frame
25
HP
0.06 HP
HP2
1/15 HP
Insulation Class
H
kW
0.04kW
Max Ambient
40°C
Mounting Type
Special
Overload Protection
No Protection
Rated Current
1.0
Rated Voltage
90
Rotation
Reversible
RPM
500
Service Factor
1
Shaft Diameter
0.5"
Speed
500
Description
Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Precision machined aluminum gear housing
Lubrication is permanent with an oil bath
Gearbox has all ball bearings
Output shaft is field interchangeable from left hand to right hand style by reassembly
Double output shaft available as a factory option
Optional conduit box available
Optional gearbox base available (10 Series only)
