Leeson

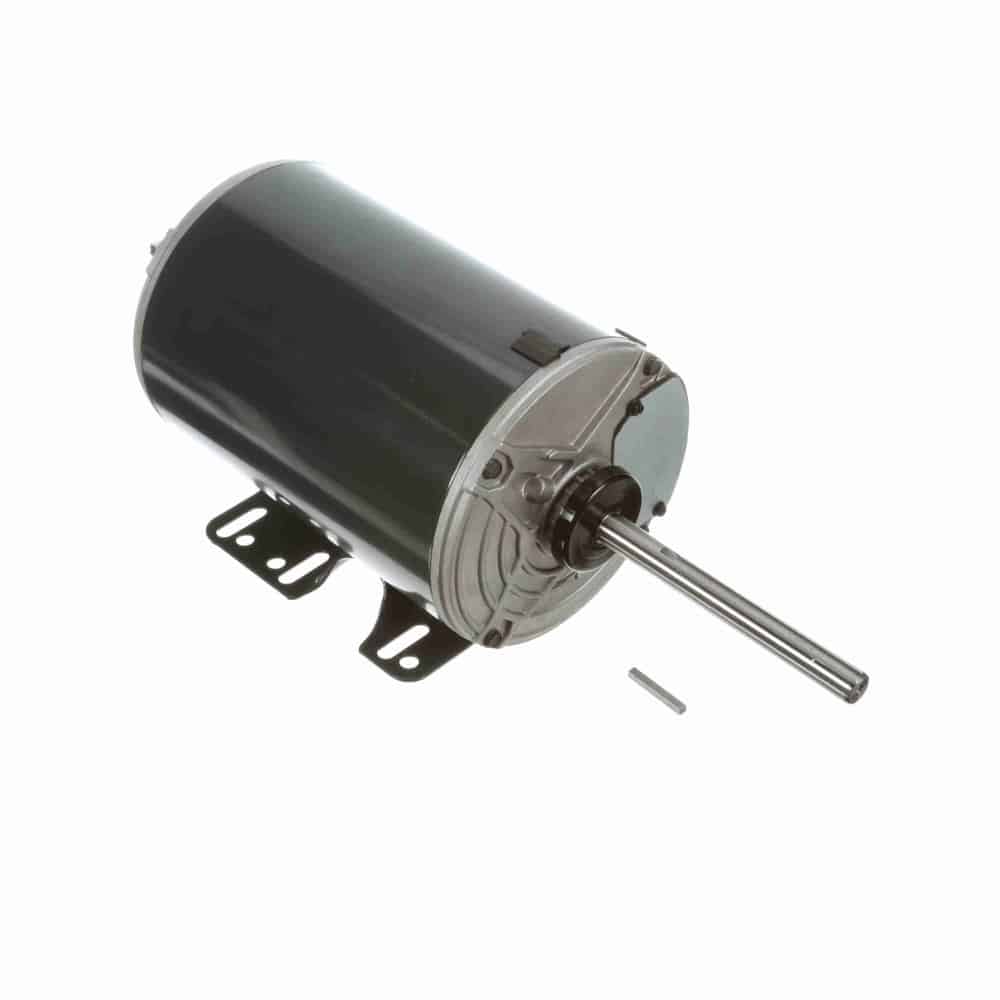

1.50HP 3PH 56HZ 6P DP 1140 208-230/460V AOL CF
Mfr # K1486 | Wright’s # LSN K1486
1-1/2HP Condenser Fan Motor, 3 Phase, 56HZ (56H, 143T, 145T Combination Base) Frame, 1140 RPM, 1 Speed, Three Phase, 208-230/460V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
K1486
Wright's #
LSN K1486
Country of Origin
MEX
Specifications
C Dim
16.77"
Electrical Type
Three Phase
Enclosure
DP
Full Load Efficiency
77
Frame
56HZ
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
65°C
Mounting Type
Rigid Base
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
5.1-5.0,2.5
Rated Voltage
208-230/460
Rotation
Counterclockwise/Clockwise
RPM
1140
Service Factor
1
Shaft Diameter
0.63"
Speed
1140
Description
Automatic reset thermal protector prevents overheating.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
