Leeson

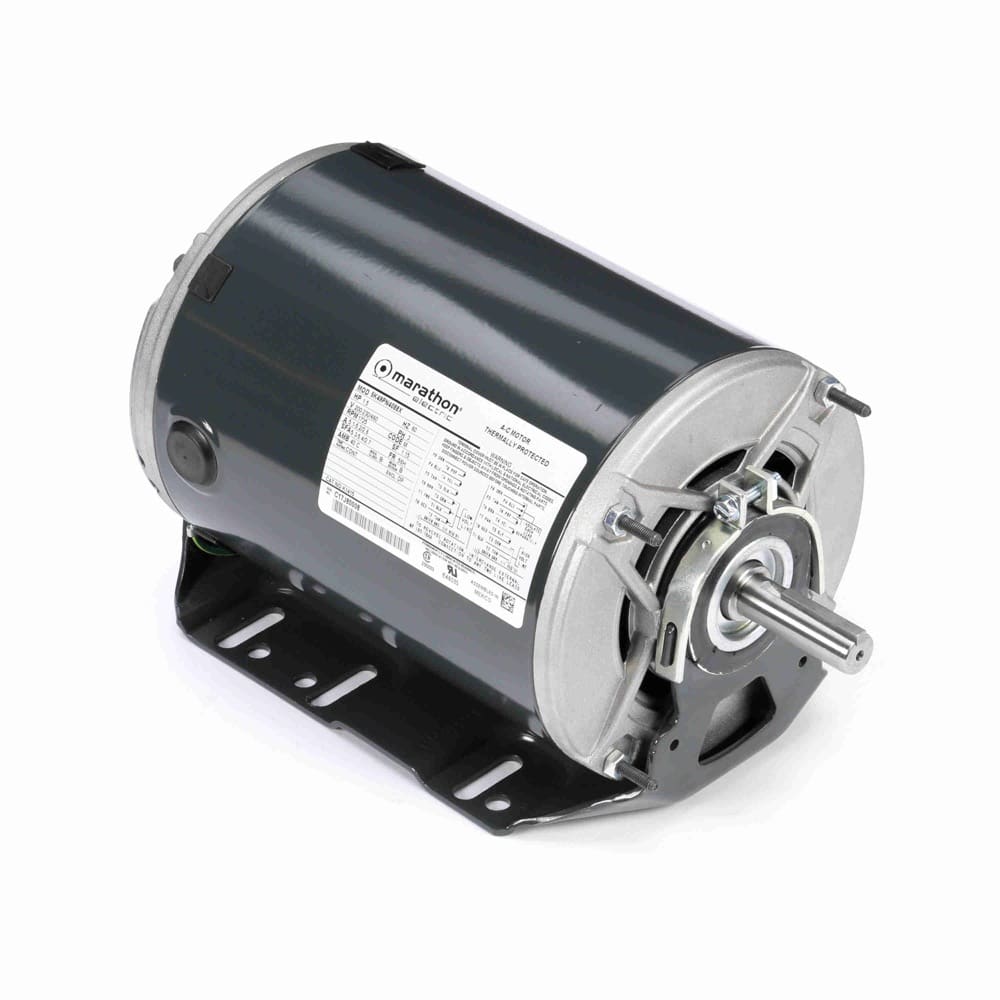

1.5HP 3PH 56H RB 1800 200-230/460V AOL
Mfr # K1415 | Wright’s # LSN K1415
1-1/2HP Fan & Blower Motor, 3 Phase, 56H Frame, 1725 RPM, 1 Speed, Three Phase, 200-230/460V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
K1415
Wright's #
LSN K1415
Country of Origin
MEX
Specifications
C Dim
12.01"
Electrical Type
Three Phase
Enclosure
DP
Full Load Efficiency
79.6
Frame
56H
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
5.1-5.2,2.6
Rated Voltage
200-230/460
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.63"
Speed
1725
