Leeson

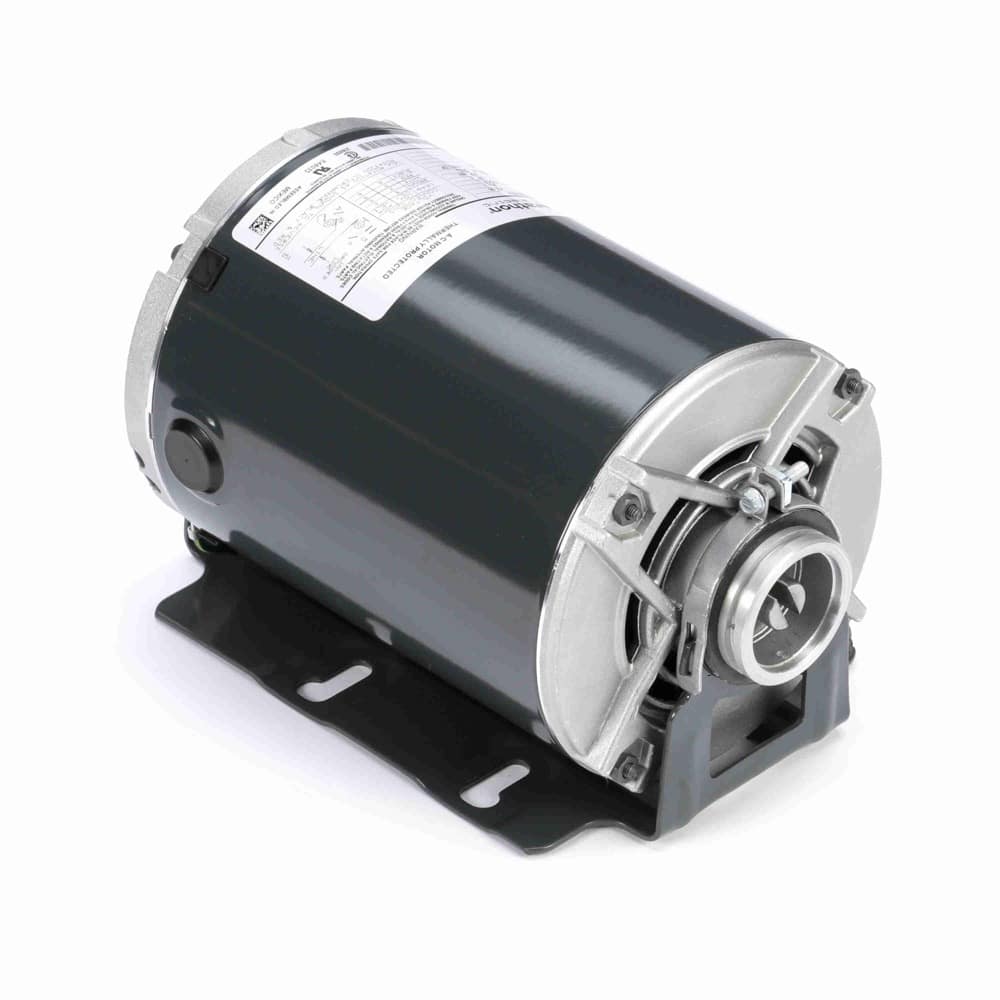

0.75HP 1PH 48Y 4P DP 1725 SpP 115/230V AOL
Mfr # HG714 | Wright’s # LSN HG714
3/4HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115/230V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
HG714
Wright's #
LSN HG714
Country of Origin
MEX
Specifications
C Dim
9.15"
Electrical Type
Split Phase
Enclosure
DP
Full Load Efficiency
68.3
Frame
48Y
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
10.4,5.2
Rated Voltage
115/230
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Automatic reset thermal protector (as noted) protects against overload.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Interchangeable with most OEM designs.
