Leeson

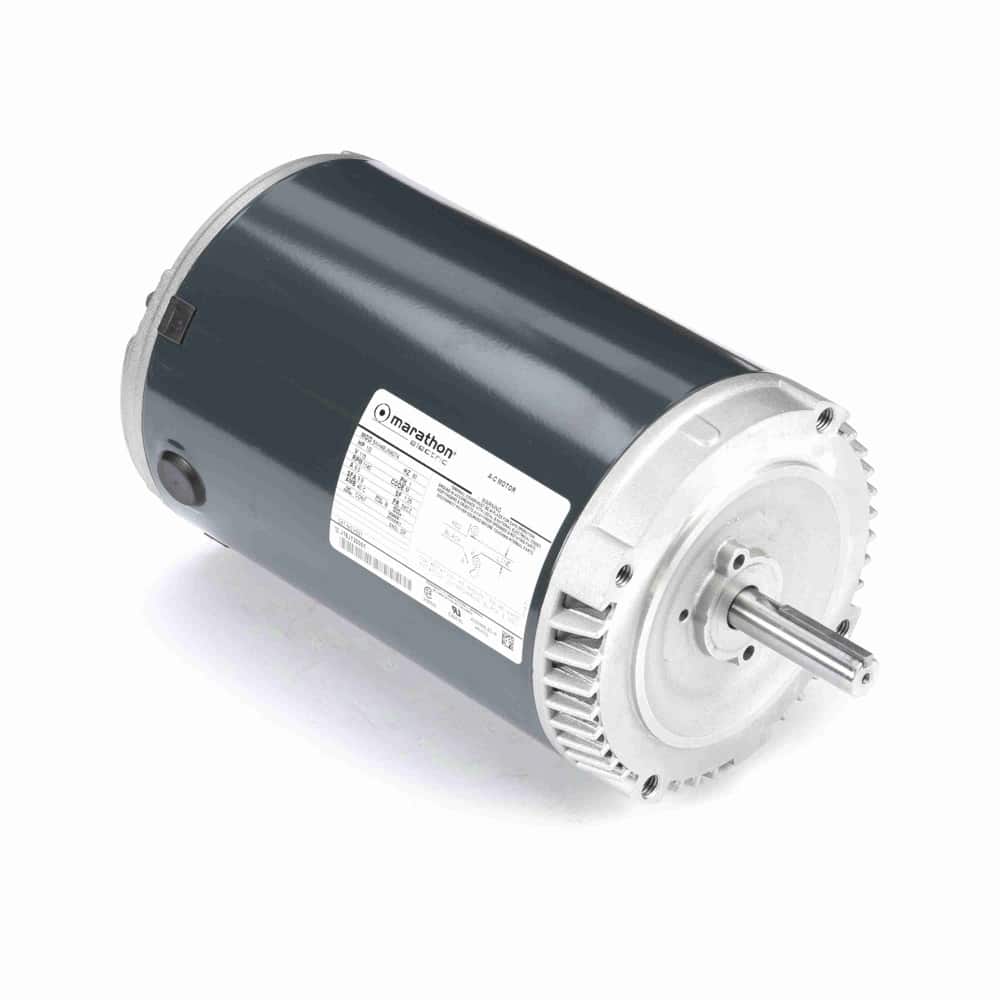

0.50HP 1PH 56CZ 6P DP 1140 SpP 115V NB
Mfr # H221 | Wright’s # LSN H221
1/2HP Fan & Blower Motor, 1 Phase, 56CZ Frame, 1140 RPM, 1 Speed, Split Phase, 115V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
H221
Wright's #
LSN H221
Country of Origin
MEX
Specifications
C Dim
12.66"
Electrical Type
Split Phase
Enclosure
DP
Full Load Efficiency
62
Frame
56CZ
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
9
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1140
Service Factor
1.25
Shaft Diameter
0.63"
Speed
1140
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double shielded ball bearings provide longer service life.
Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
Various mounting configurations (as noted).
