Leeson
0.50HP 1PH 56 4P DP 2spd 1725 SpP 115V
Mfr # H175 | Wright’s # LSN H175

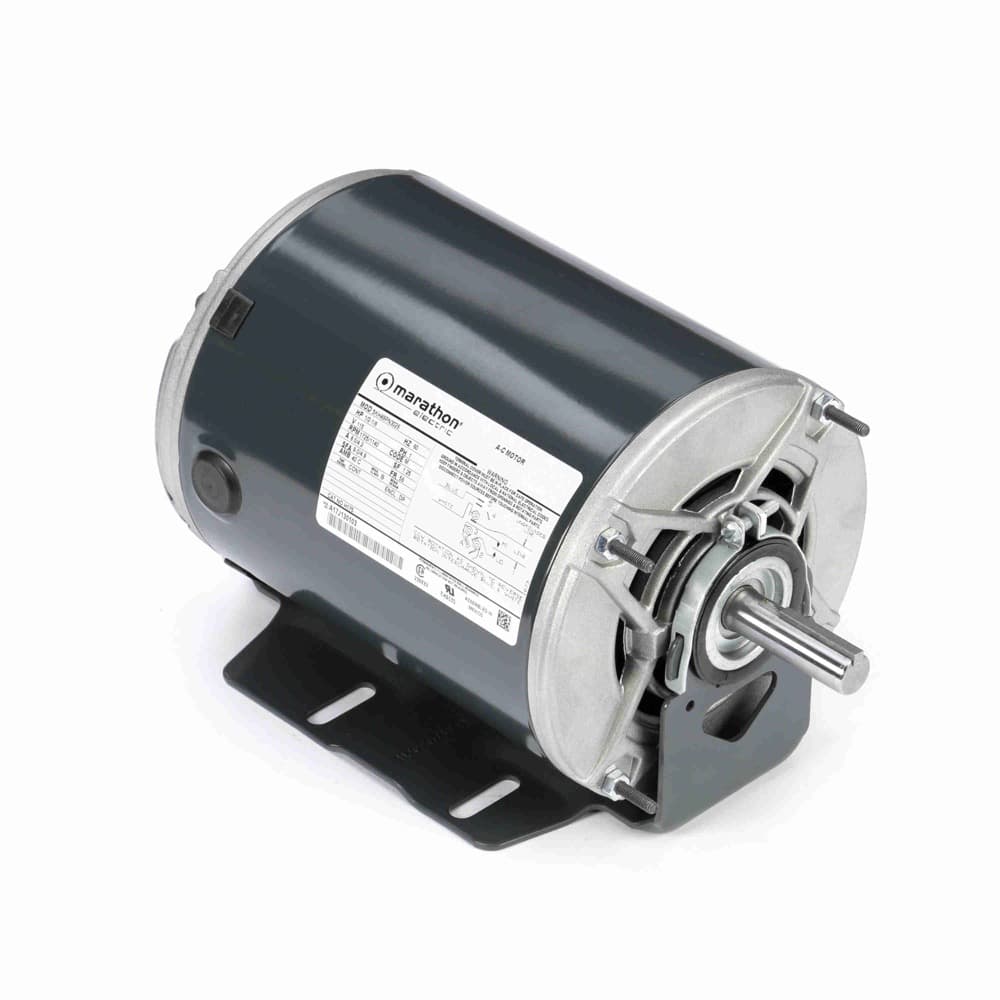

1/2HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725/1140 RPM, 2 Speed, Split Phase, 115V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
H175
Wright's #
LSN H175
Country of Origin
MEX
Specifications
C Dim
11.48"
Electrical Type
Split Phase
Enclosure
DP
Full Load Efficiency
64
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
2
Overload Protection
No Protection
Phase
1
Rated Current
8.0,4.2
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.63"
Speed
1725/1140
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
