Leeson
1.50HP 1PH 56H 4P DP 1725 115/208-230V MOL
Mfr # G951 | Wright’s # LSN G951

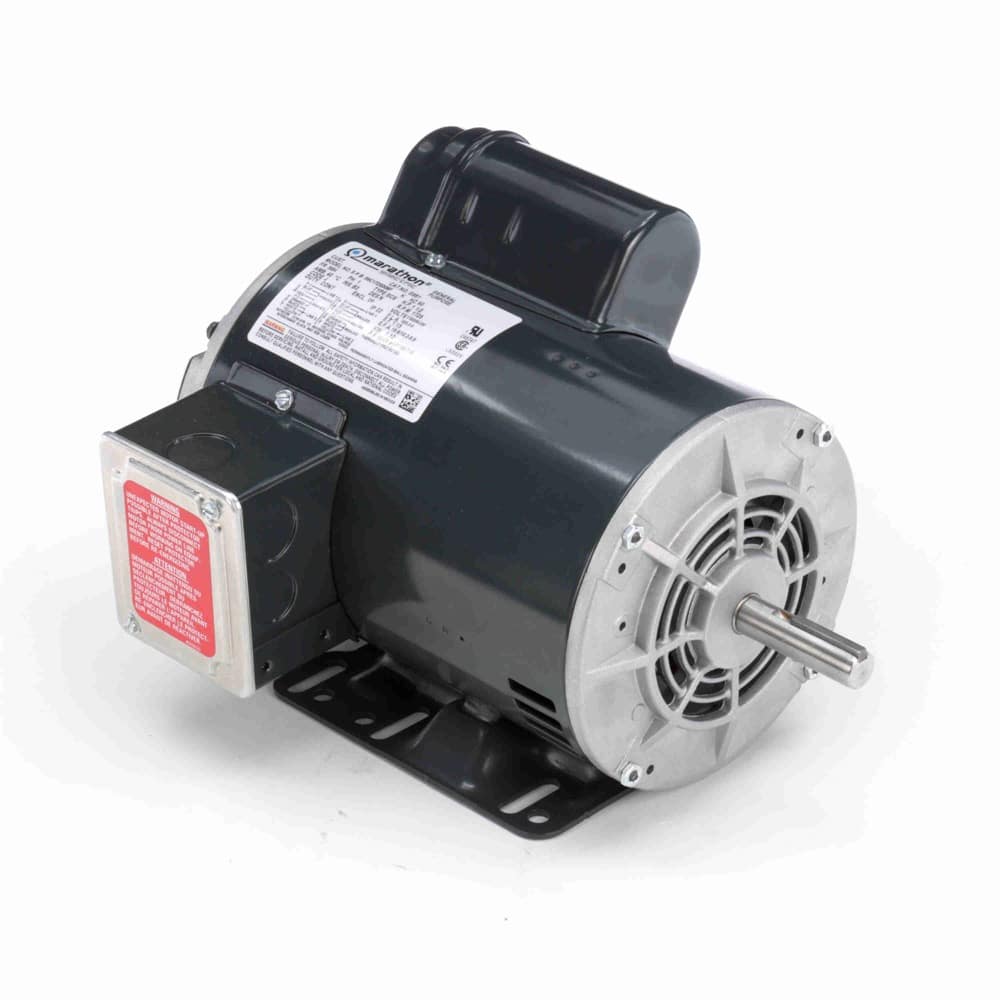

1-1/2HP Compressor Motor, 1 Phase, 56H Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, DP Enclosure, Manual Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
G951
Wright's #
LSN G951
Country of Origin
MEX
Specifications
C Dim
12.44"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
77
Frame
56H
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
18.0/9.3-9.0
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.
