Leeson

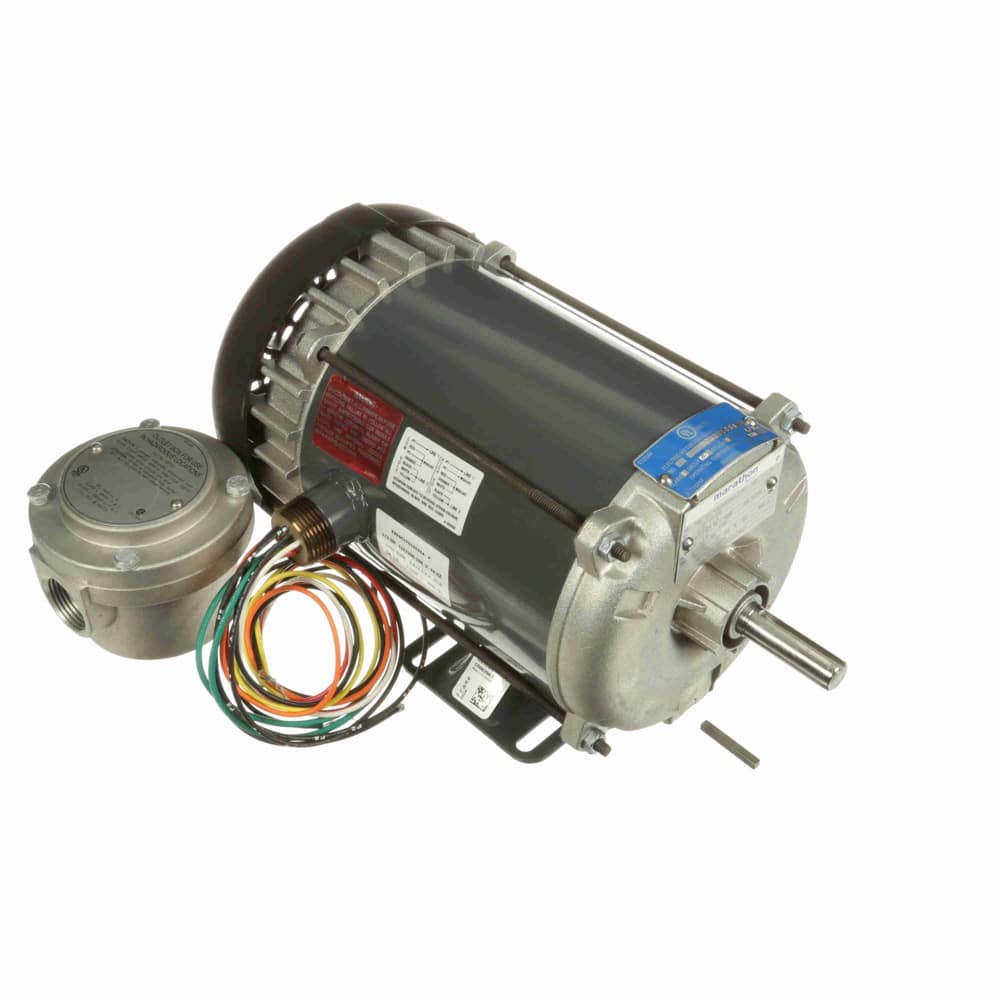

1/2HP 1PH 56 4P XPFC 1800 115/230V AOL
Mfr # G654A | Wright’s # LSN G654A
0.50HP Explosion Proof Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230VV, Explosion Proof Fan cooled Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Sub-Brand
Hazardous Duty®
Mfr #
G654A
Wright's #
LSN G654A
Country of Origin
MEX
Specifications
C Dim
13.94"
Electrical Type
Capacitor Start Induction Run
Enclosure
Explosion Proof Fan cooled
Full Load Efficiency
66
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
0.50 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
AOL
Phase
1
Rated Current
8.8/4.4
Rated Voltage
115/230V
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725
Starting Method
