Leeson

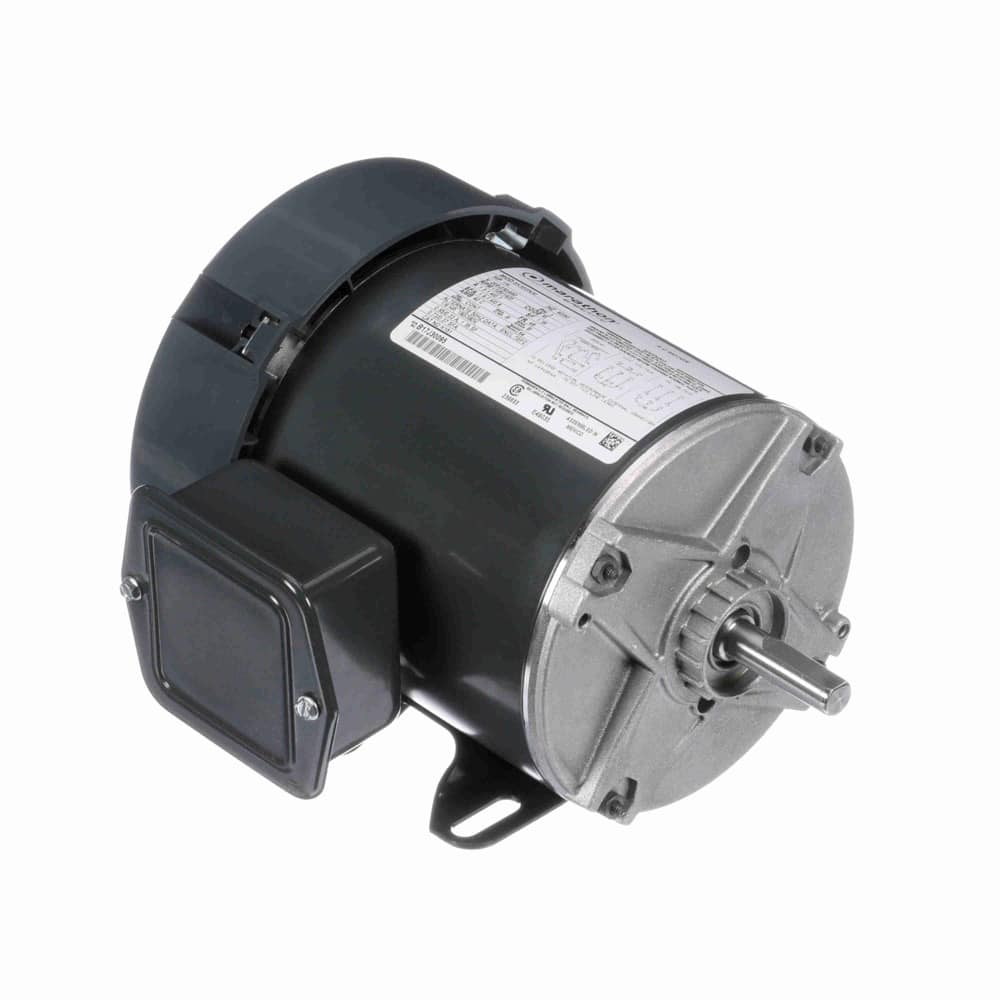

1/3HP 1PH 56C TEFC 1800 115/208-230V WB
Mfr # G570 | Wright’s # LSN G570
0.33 & 0.25HP General Purpose Motor, 1 Phase, 56C Frame, 1725 & 1425 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230VV, Totally Enclosed Fan Cooled Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
G570
Wright's #
LSN G570
Country of Origin
MEX
Specifications
C Dim
11.81"
Electrical Type
Capacitor Start Induction Run
Enclosure
Totally Enclosed Fan Cooled
Full Load Efficiency
55
Frame
56C
Frequency
60
HP
0.33 HP
HP2
0.33 & 0.25 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
6.6/3.1-3.3 & 7/3.5
Rated Voltage
115/208-230V
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
