Leeson
0.75HP 3PH 56 4P DP 1725 208-230/460V AOL
Mfr # G101 | Wright’s # LSN G101

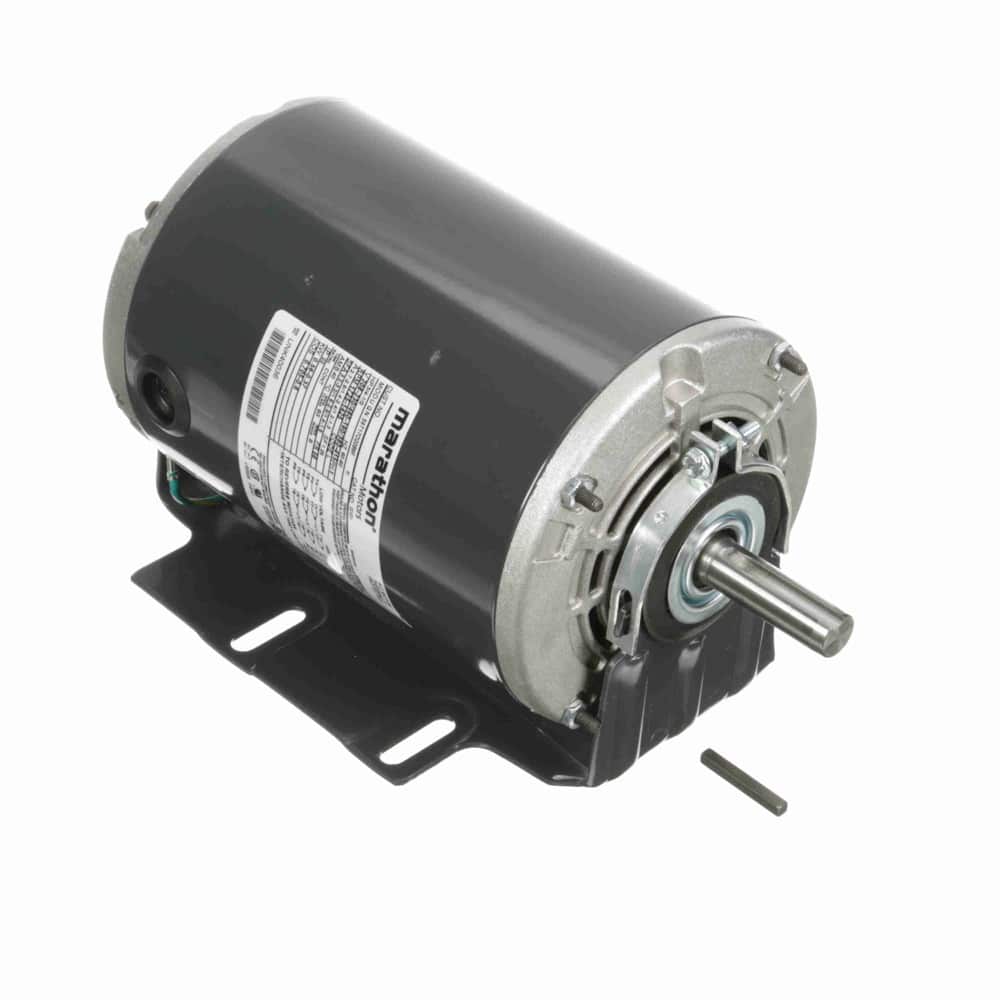

3/4HP Fan & Blower Motor, 3 Phase, 56 Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
G101
Wright's #
LSN G101
Country of Origin
MEX
Specifications
C Dim
10.97"
Electrical Type
Squirrel Cage Induction Run
Enclosure
DP
Full Load Efficiency
75.5
Frame
56
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
2.7-2.8/1.4 & 2.4/1.2-1.3
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
