Leeson

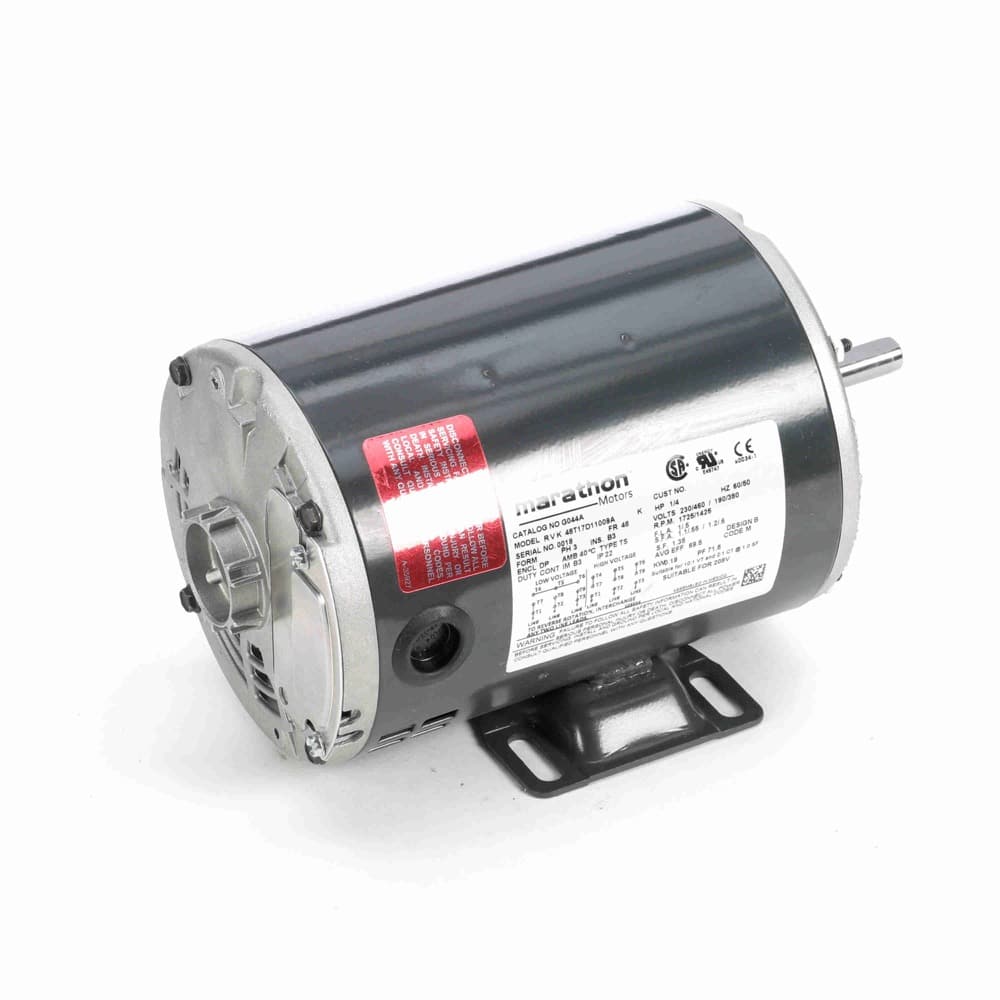

0.25HP 3PH 48 4P DP 1725 230/460V
Mfr # G044A | Wright’s # LSN G044A
1/4HP General Purpose Motor, 3 Phase, 48 Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, DP Enclosure
$290.20
Product Information
Brand
Leeson
Sub-Brand
XRI® General Purpose
Mfr #
G044A
Wright's #
LSN G044A
Country of Origin
MEX
Specifications
C Dim
10.34"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
DP
Full Load Efficiency
69.5
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1/.5 & 1/.5
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725 & 1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
