Leeson

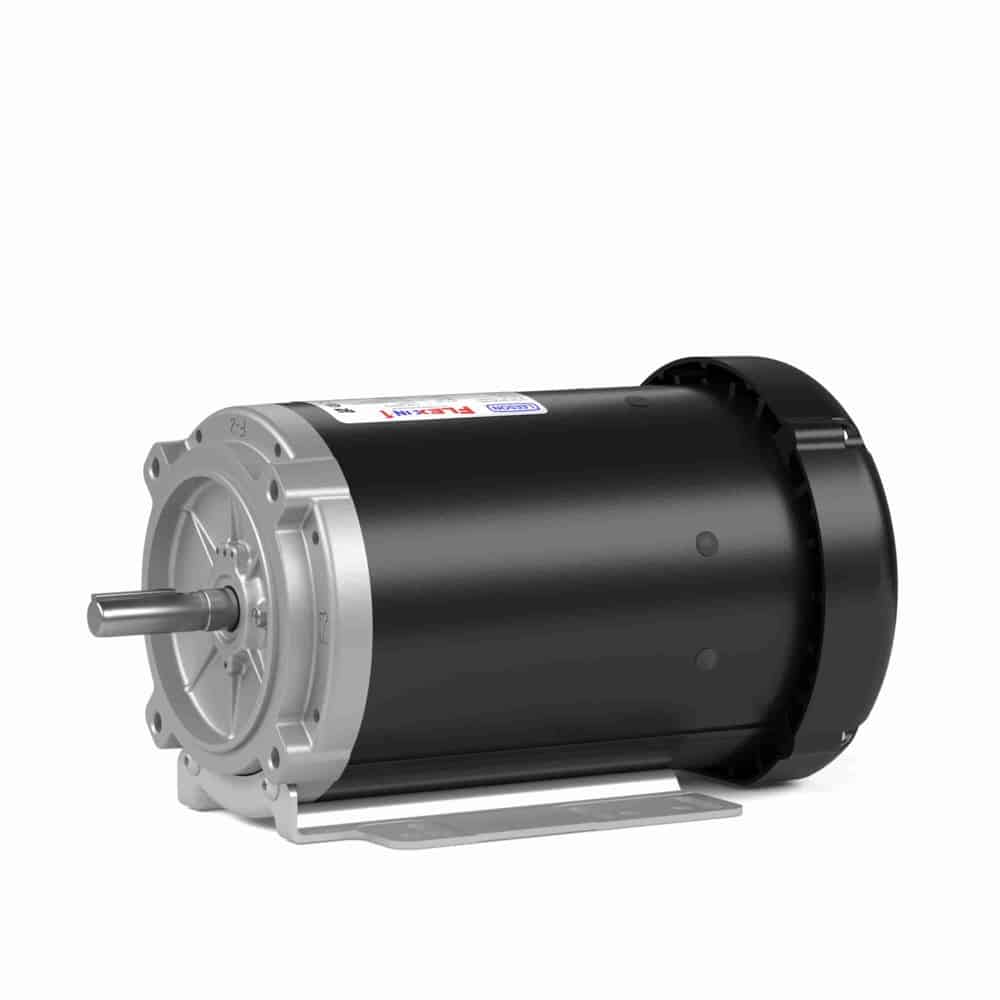

0.75HP 3PH 56HC 2P DP 3450 208-230/460V WB
Mfr # FX34BK001 | Wright’s # LSN FX34BK001
3/4HP General Purpose Motor, 3 Phase, 56HC Frame, 3450 & 2850 RPM, 1 Speed, Squirrel Cage Inverter Rated, 208-230/460V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Sub-Brand
FLEX-IN-1™
Mfr #
FX34BK001
Wright's #
LSN FX34BK001
Country of Origin
MEX
Specifications
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
DP
Full Load Efficiency
82.5
Frame
56HC
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.5-2.6/1.3 & 2.6/1.3
Rated Voltage
208-230/460
Rotation
Reversible
RPM
3450
Service Factor
1.25
Shaft Diameter
0.625"
Speed
3450 & 2850
Starting Method
Description
One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
*** Kits sold separately. Light assembly required.
