Leeson

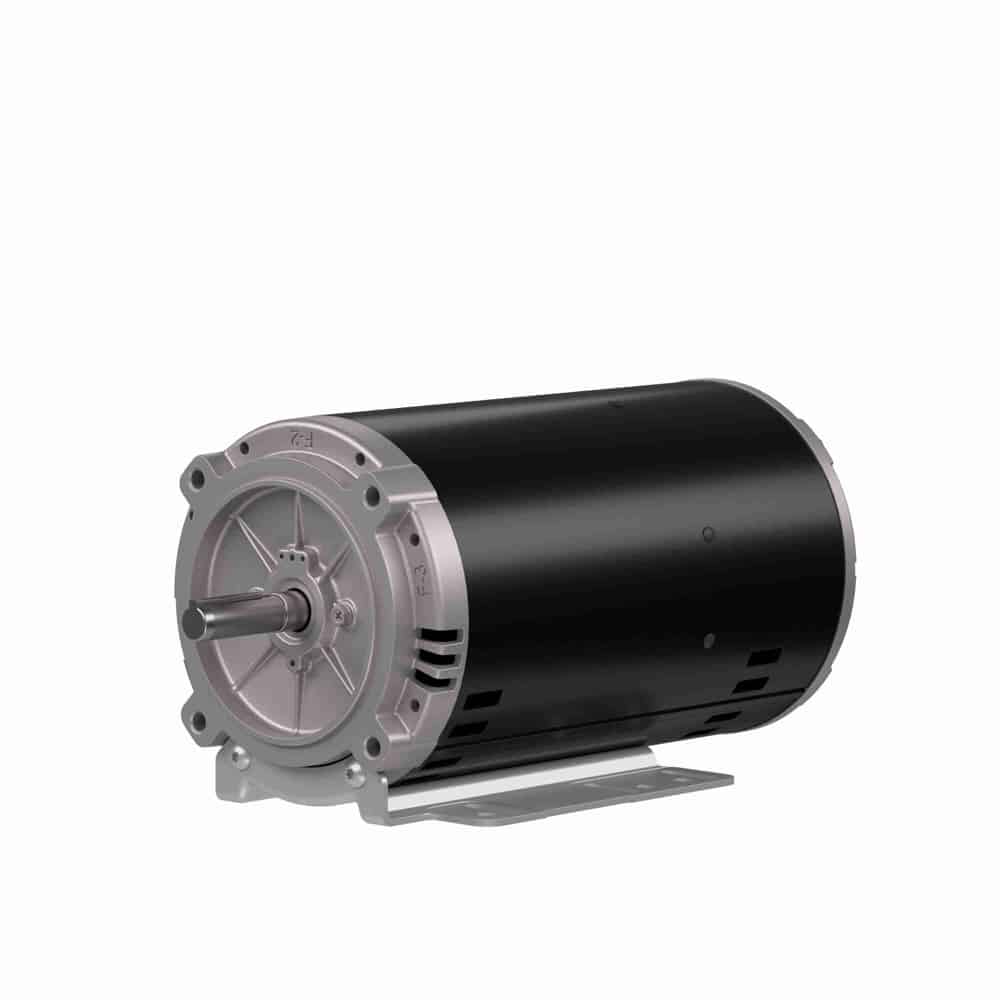

1.50HP 3PH 56HC 4P DP 1725 230/460V WB

Name: 1.50HP 3PH 56HC 4P DP 1725 230/460V WB
Brand: Leeson
SKU: 38243
Availability: InStock

Mfr # FX32BK003 | Wright’s # LSN FX32BK003

1-1/2HP General Purpose Motor, 3 Phase, 56HC Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, DP Enclosure

$441.53

Product Information

Brand Leeson

Sub-Brand FLEX-IN-1™

Mfr # FX32BK003

Wright's # LSN FX32BK003

Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated

Enclosure DP

Full Load Efficiency 86.5

Frame 56HC

Frequency 60 Hz

HP 1.5 HP

HP2 1-1/2 HP

Insulation Class F

kW 1.1kW

Material Rolled Steel

Max Ambient 40°C

Mounting Type Bolt-on Base

Number of Poles 4

Number of Speeds 1

Overload Protection No Protection

Phase 3

Rated Current 4.4/2.2 & 5/2.5

Rated Voltage 230/460

Rotation Reversible

RPM 1725

Service Factor 1.15

Shaft Diameter 0.625"

Speed 1725 & 1425

Starting Method

Description

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
*** Kits sold separately. Light assembly required.

Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
