Leeson

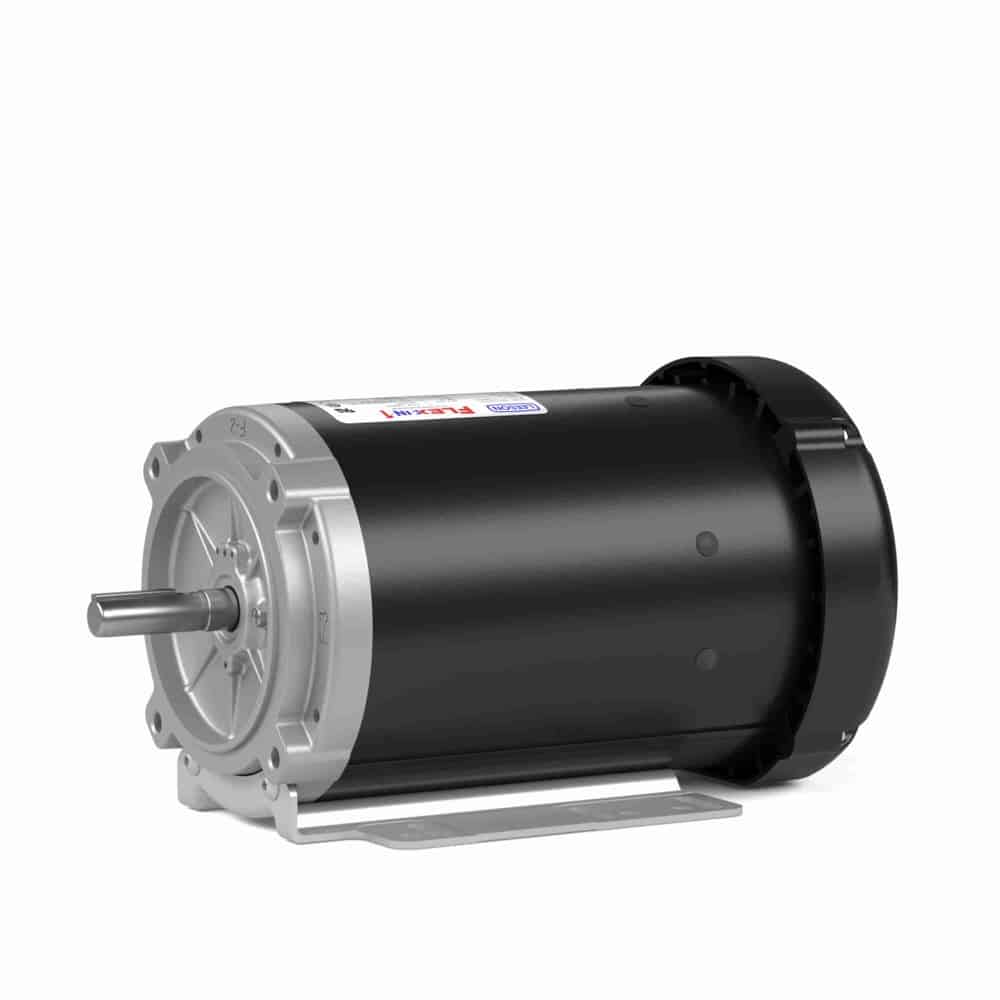

0.33HP 3PH 56HC 6P DP 1140 208-230/460V WB
Mfr # FX13BK005 | Wright’s # LSN FX13BK005
1/3HP General Purpose Motor, 3 Phase, 56HC Frame, 1140 & 950 RPM, 1 Speed, Squirrel Cage Inverter Rated, 208-230/460V, DP Enclosure
$402.11
Product Information
Brand
Leeson
Sub-Brand
FLEX-IN-1™
Mfr #
FX13BK005
Wright's #
LSN FX13BK005
Country of Origin
MEX
Specifications
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
DP
Full Load Efficiency
74.4
Frame
56HC
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
F
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.2-1.4/.7 & 1.6/.8
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1140
Service Factor
1.35
Shaft Diameter
0.625"
Speed
1140 & 950
Starting Method
Description
One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
*** Kits sold separately. Light assembly required.
