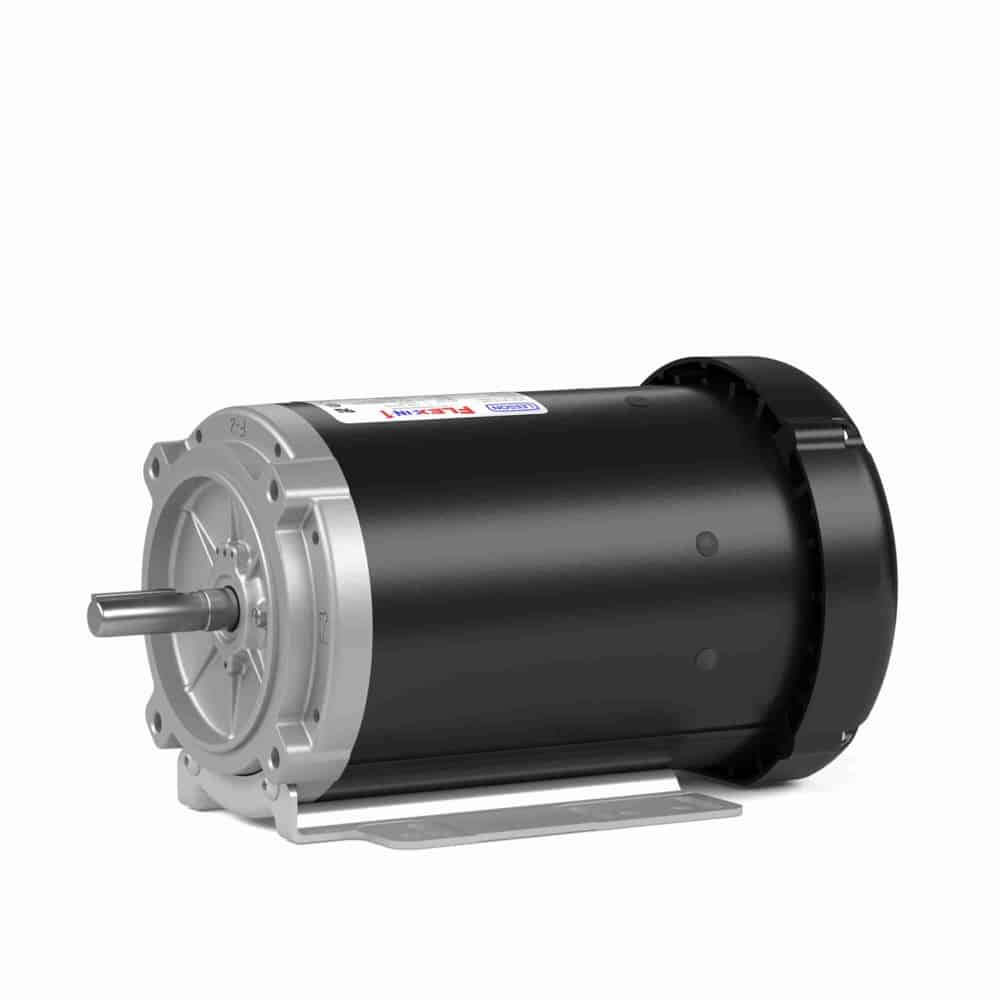

0.50HP 3PH 56C 4P TEFC 1725 230/460V WB
Leeson

0.50HP 3PH 56C 4P TEFC 1725 230/460V WB

Mfr # FX12BK004 | Wright’s # LSN FX12BK004

1/2HP General Purpose Motor, 3 Phase, 56C Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure

1 in stock

Sign in to access special pricing and availability.
x

$343.36

Product Information

Brand Leeson
Sub-Brand FLEX-IN-1™
Mfr # FX12BK004
Wright's # LSN FX12BK004
Country of Origin MEX

Specifications

Electrical Type Squirrel Cage Inverter Rated
Enclosure TEFC
Full Load Efficiency 72.1
Frame 56C
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class F
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Bolt-on Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.4/1.2 & 2.2/1.1
Rated Voltage 230/460
Rotation Reversible
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725 & 1425
Starting Method

Description

One FLEX-IN-1™ motor replaces 18 general purpose motors
The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
Out-of-the-box motor with provisions for multiple kits*** – Adding SGR (shaft grounding ring) kit; Adding a brake kit; Adding a drip cover (ODP); Adding lint guard (TEFC).
Inverter duty capable – 10:1 CT for TEFC – 2:1 CT for DP
Combination mounting holes in base: 56/143 – Shorter base motor option and 56/56H/143/145 – Longer base motor option
*** Kits sold separately. Light assembly required.

Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
