Leeson

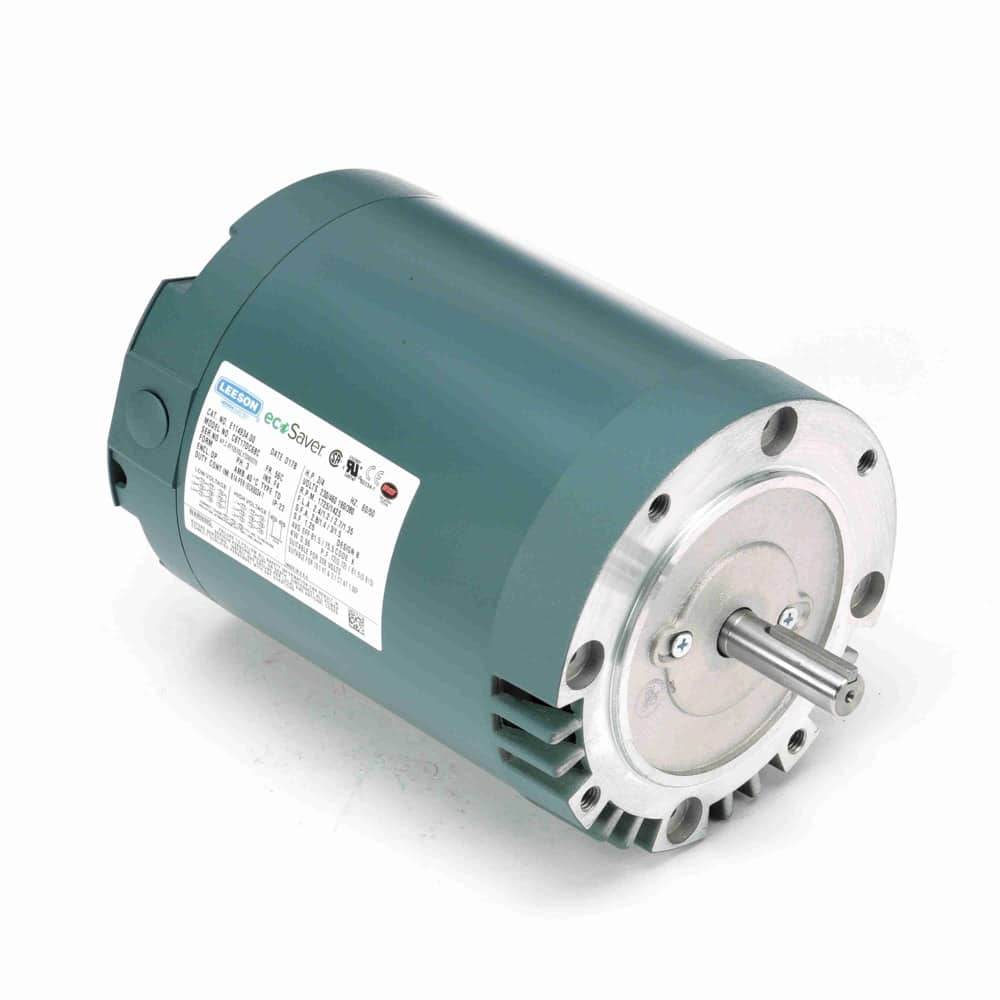

0.75HP 3PH 56C 4P DP 1725 230/460V TS NB
Mfr # E114934.00 | Wright’s # LSN E114934.00
3/4HP General Purpose Motor, 3 Phase, 56C Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, DP Enclosure, Thermostat Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Sub-Brand
ecoSaver™
Mfr #
E114934.00
Wright's #
LSN E114934.00
Country of Origin
USA
Specifications
C Dim
10.87"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
DP
Full Load Efficiency
81.5
Frame
56C
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
2.4/1.2 & 2.7/1.35
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
