Leeson

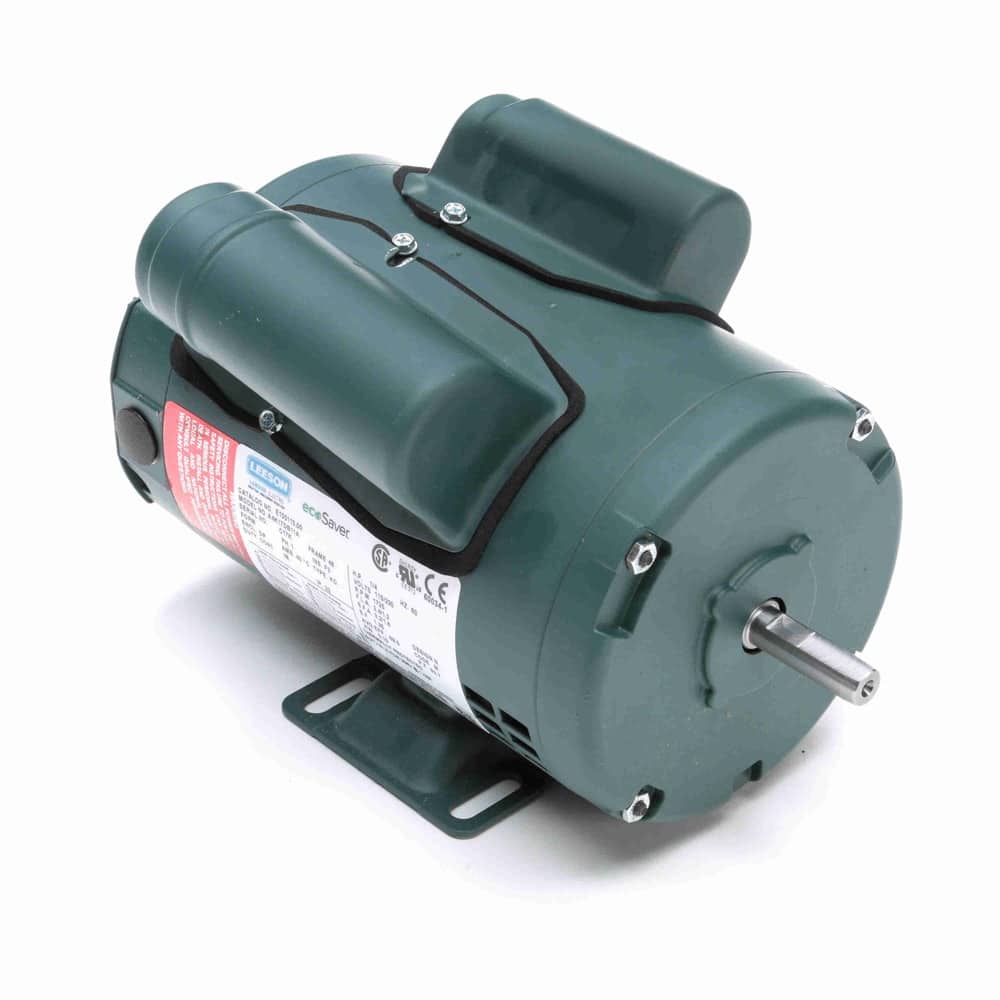

0.25HP 1PH 48 4P DP 1725 115/230V AOL
Mfr # E100115.00 | Wright’s # LSN E100115.00
1/4HP General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, DP Enclosure, Automatic Overload Protection
$445.14
Product Information
Brand
Leeson
Sub-Brand
ecoSaverâ„¢
Mfr #
E100115.00
Wright's #
LSN E100115.00
Country of Origin
MEX
Specifications
C Dim
10.12"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
DP
Full Load Efficiency
68.5
Frame
48
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
F
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
2.4/1.2
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
