Leeson

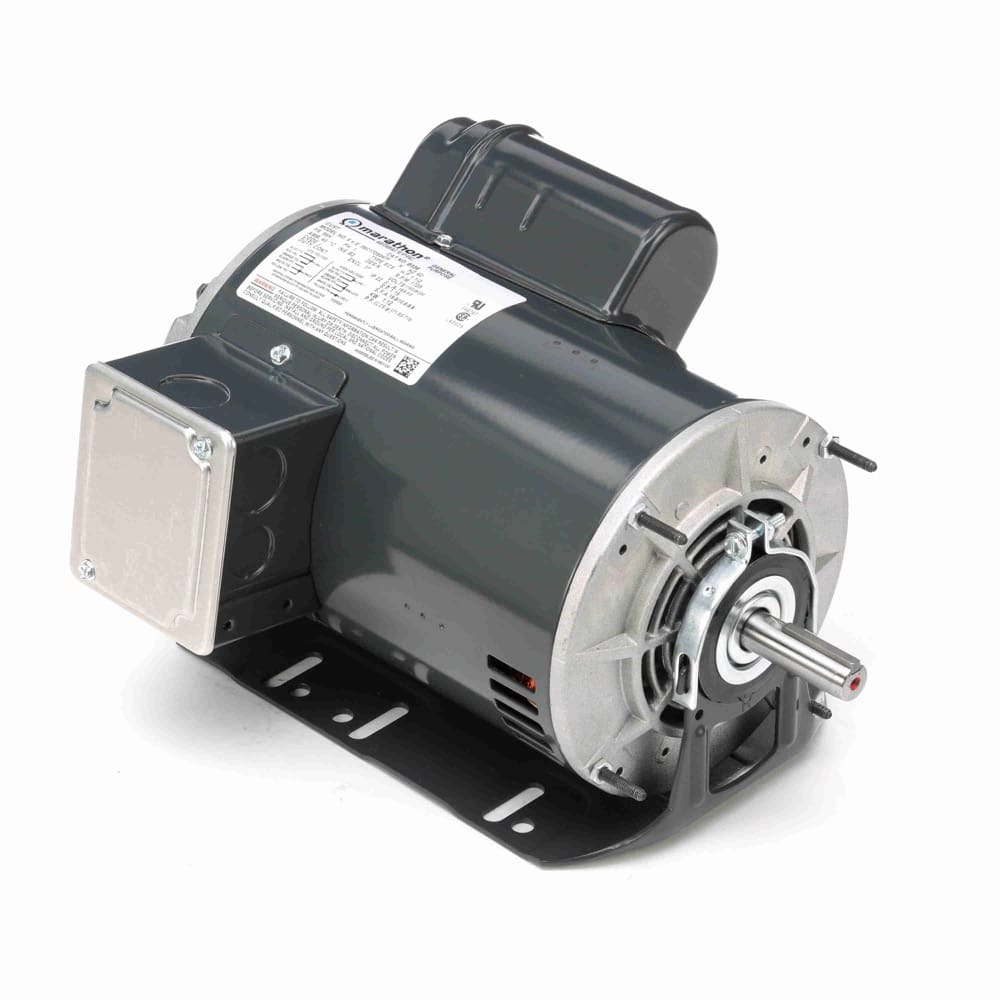

1.50HP 1PH 56H 4P DP 1725 115/208-230V
Mfr # B336 | Wright’s # LSN B336
1-1/2HP General Purpose Motor, 1 Phase, 56H Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # B336
Wright's # LSN B336
Country of Origin MEX
Specifications
C Dim 12.85"
Electrical Type Capacitor Start Induction Run
Enclosure DP
Full Load Efficiency 77
Frame 56H
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Resilient Base - Extended Studs
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 18.0/9.3-9.0
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
