Leeson

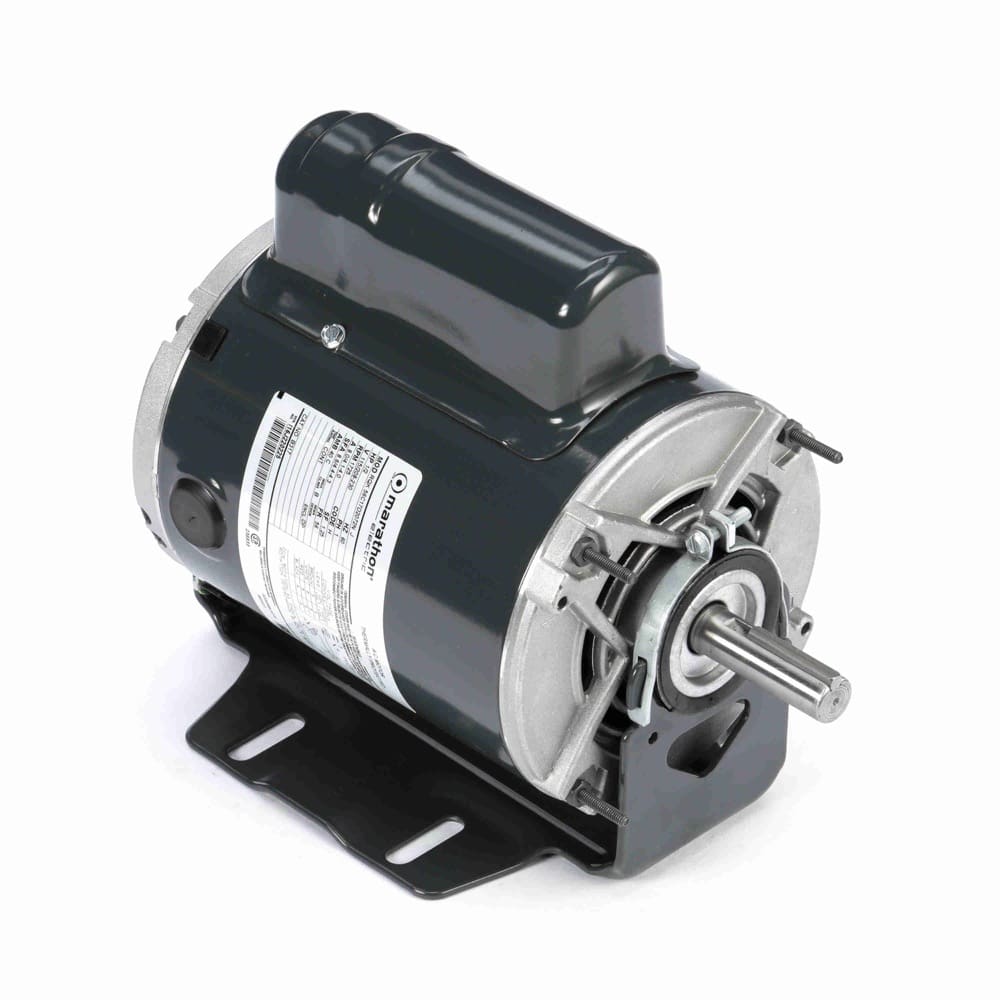

1/2HP 1PH 56 ODP 1800 115/208-230V AOL
Mfr # B317 | Wright’s # LSN B317
1/2HP General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
B317
Wright's #
LSN B317
Country of Origin
MEX
Specifications
C Dim
10.32"
Electrical Type
Capacitor Start Induction Run
Enclosure
DP
Full Load Efficiency
66
Frame
56
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base - Extended Studs
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
8.0/4.1-4.0
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.625"
Speed
1725
Starting Method
