Leeson

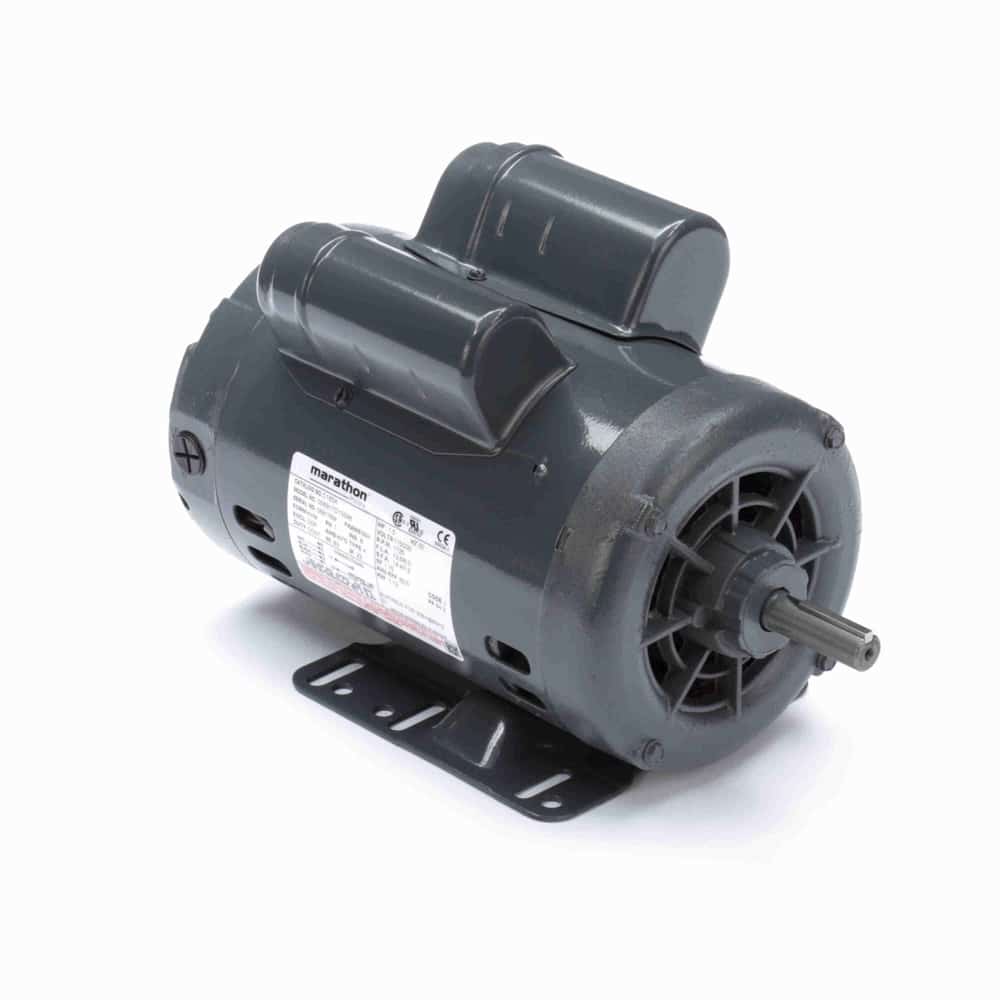

1/4HP 1PH 48Y ODP 1800 115/208-230V BM
Mfr # B313 | Wright’s # LSN B313
0.25HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230VV, Drip Proof Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
B313
Wright's #
LSN B313
Country of Origin
MEX
Specifications
C Dim
9.95"
Electrical Type
Capacitor Start Induction Run
Enclosure
Drip Proof
Full Load Efficiency
57.5
Frame
48Y
Frequency
60
HP
0.25 HP
HP2
0.25 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base - Extended Studs
Number of Poles
4
Number of Speeds
1
Overload Protection
AOL
Phase
1
Rated Current
5.2/2.8-2.6
Rated Voltage
115/208-230V
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
