Leeson

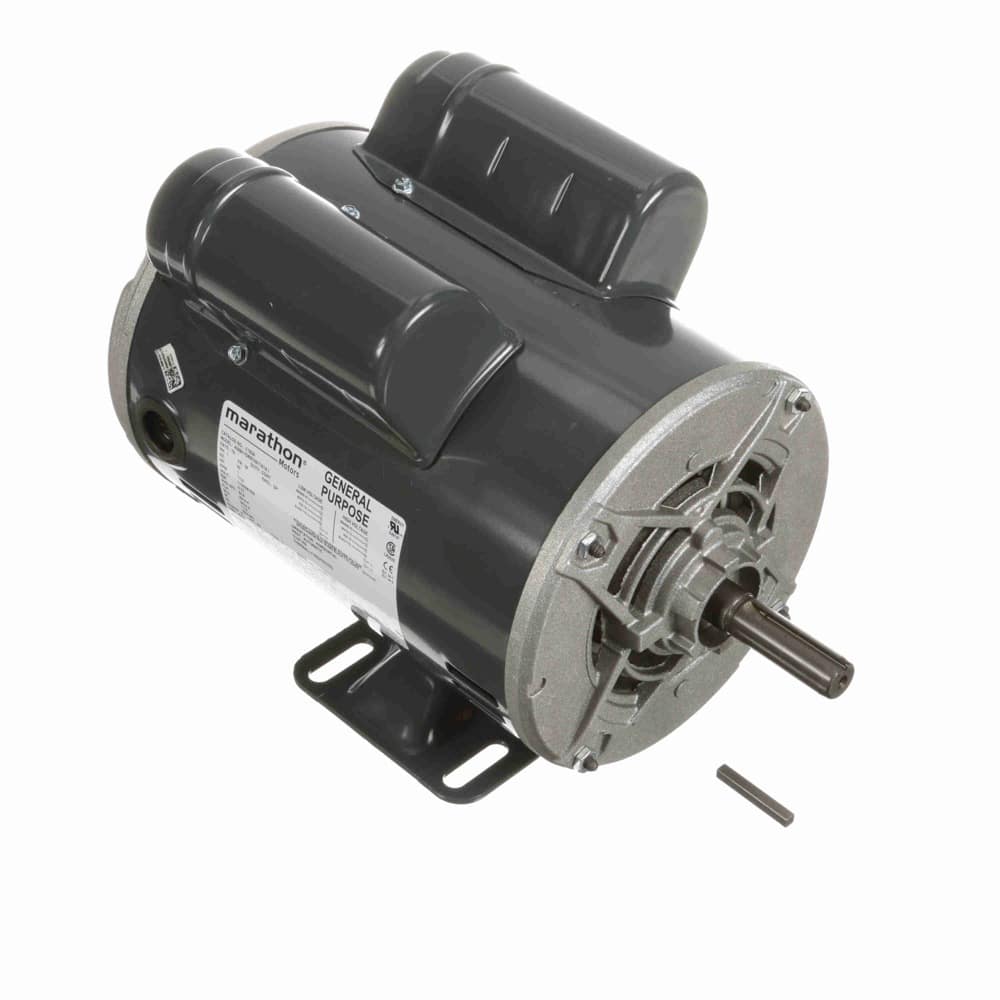

1HP 1PH 56 ODP 1800 115/208-230V BM
Mfr # B311 | Wright’s # LSN B311
1HP Fan & Blower Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230VV, Drip Proof Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
B311
Wright's #
LSN B311
Country of Origin
MEX
Specifications
C Dim
11.35"
Electrical Type
Capacitor Start Induction Run
Enclosure
Drip Proof
Full Load Efficiency
72
Frame
56
Frequency
60
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base - Extended Studs
Number of Poles
4
Number of Speeds
1
Overload Protection
AOL
Phase
1
Rated Current
12.8/6.4-6.4
Rated Voltage
115/208-230V
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725
Starting Method
