Leeson

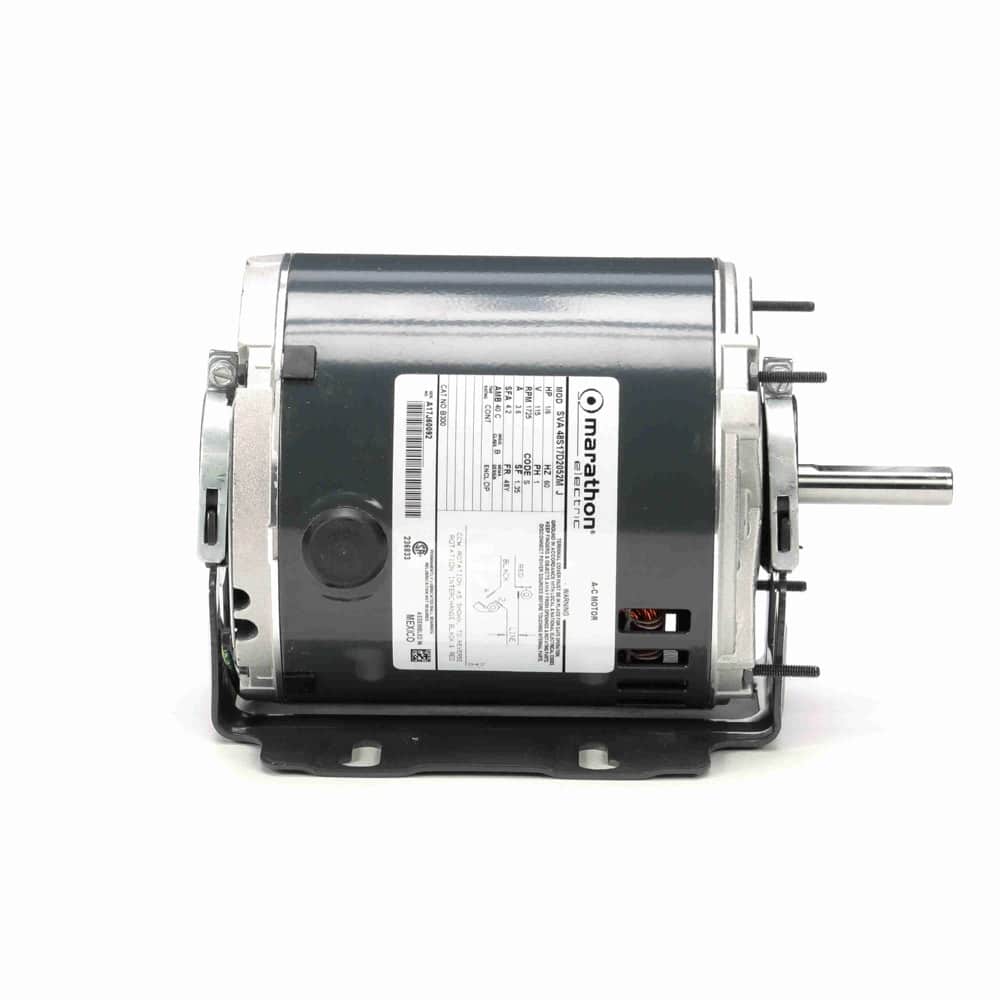

0.17HP 1PH 48Y 4P DP 1725 SpP 115V
Mfr # B300 | Wright’s # LSN B300
1/6HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, DP Enclosure
$195.62
Product Information
Brand Leeson
Mfr # B300
Wright's # LSN B300
Country of Origin MEX
Specifications
C Dim 9.32"
Electrical Type Split Phase
Enclosure DP
Full Load Efficiency 55
Frame 48Y
Frequency 60 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Resilient Base - Extended Studs
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 3.6
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.35
Shaft Diameter 0.5"
Speed 1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
