Leeson

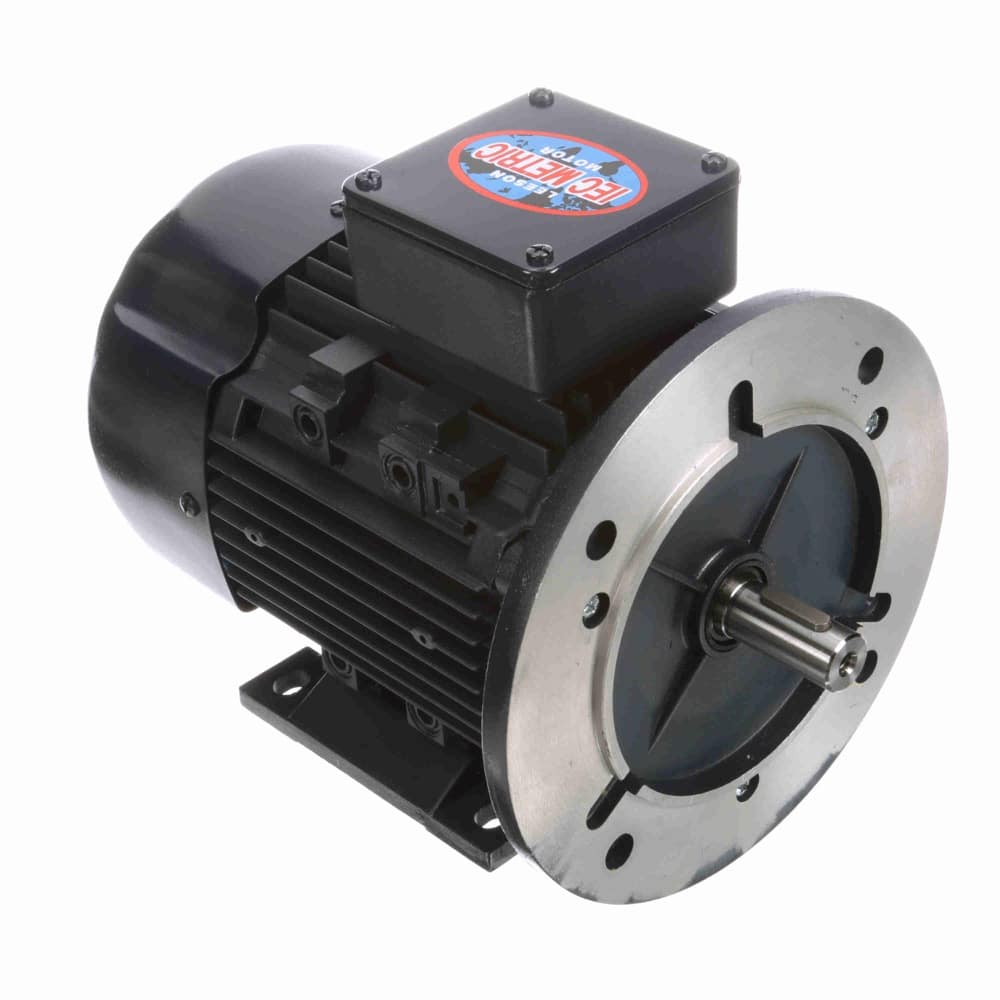

0.75HP 3PH 80 4P TEFC 1690 230/460V
Mfr # 192045.00 | Wright’s # LSN 192045.00
3/4HP IEC Motor, 3 Phase, 80 Frame, 1690 & 1390 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure
$104.52
Product Information
Brand Leeson
Sub-Brand LEESON® PASSPORT
Mfr # 192045.00
Wright's # LSN 192045.00
Country of Origin CHN
Specifications
C Dim 11.1"
Electrical Type Squirrel Cage Inverter Rated
Enclosure TEFC
Full Load Efficiency 74
Frame 80
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class F
kW 0.56kW
Material Aluminum
Max Ambient 40°C
Mounting Type B3
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 3
Rated Current 2.5/1.25 & 2.9/1.45
Rated Voltage 230/460
Rotation Reversible
RPM 1690
Service Factor 1.15
Shaft Diameter 0.75"
Speed 1690 & 1390
Starting Method
Description
High-efficiency design utilizes low-loss steel laminations for optimum power and performance.
Inverter rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
IP55 weatherproof enclosure for use in a wide range of applications.
Double-shielded bearings extend the service life of the motor.
