Leeson

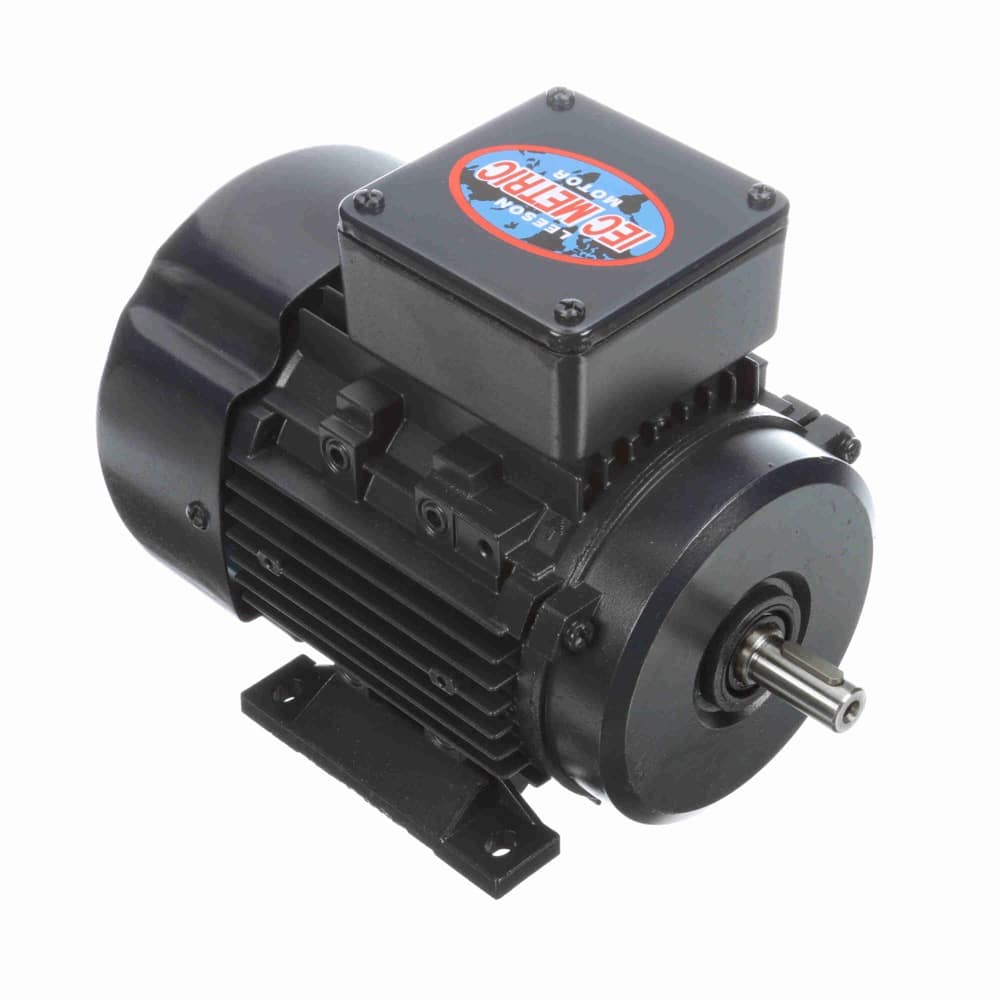

0.75HP 3PH 71 2P TEFC 3400 230/460V
Mfr # 192040.00 | Wright’s # LSN 192040.00
3/4HP IEC Motor, 3 Phase, 71 Frame, 3400 & 2780 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure
$84.17
Product Information
Brand
Leeson
Sub-Brand
LEESON® PASSPORT
Mfr #
192040.00
Wright's #
LSN 192040.00
Country of Origin
CHN
Specifications
C Dim
9.44"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
TEFC
Full Load Efficiency
74
Frame
71
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Aluminum
Max Ambient
40°C
Mounting Type
B3
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.4/1.2 & 2.6/1.3
Rated Voltage
230/460
Rotation
Reversible
RPM
3400
Service Factor
1.15
Shaft Diameter
0.562"
Speed
3400 & 2780
Starting Method
Description
High-efficiency design utilizes low-loss steel laminations for optimum power and performance.
Inverter rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
IP55 weatherproof enclosure for use in a wide range of applications.
Double-shielded bearings extend the service life of the motor.
