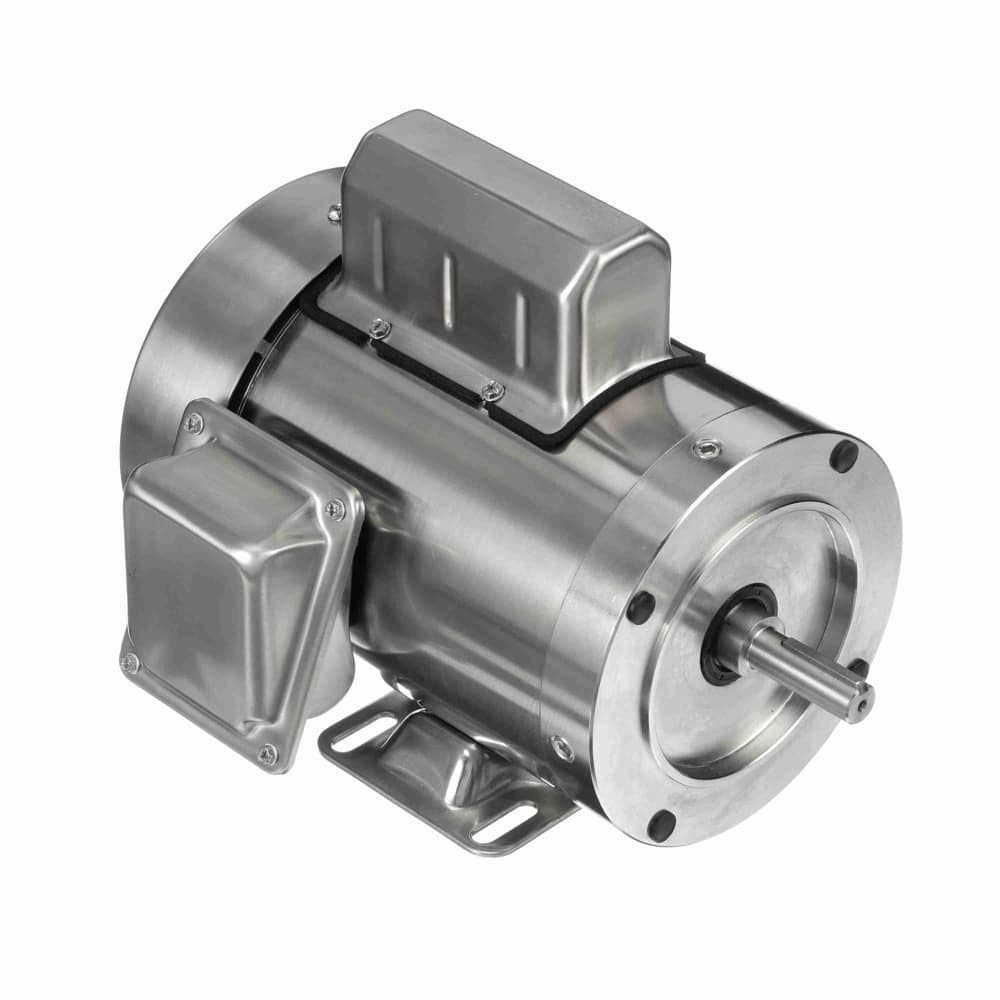

1HP 1PH 56C 4P TEFC 1725 115/230V WB SS
Leeson

1HP 1PH 56C 4P TEFC 1725 115/230V WB SS

Mfr # 191479.00 | Wright’s # LSN 191479.00

1HP Stainless Steel Washdown Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure

Contact Us For Pricing

Product Information

Brand Leeson
Sub-Brand SST Duck™
Mfr # 191479.00
Wright's # LSN 191479.00
Country of Origin CHN

Specifications

C Dim 12.24"
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 69
Frame 56C
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class F
kW 0.75kW
Material Stainless Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 13.6/6.8
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725
Starting Method

Description

Full stainless steel exterior promotes resistance to water and chemical corrosion.
Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Insulation systems deliver superior protection against voltage spikes.
