Leeson

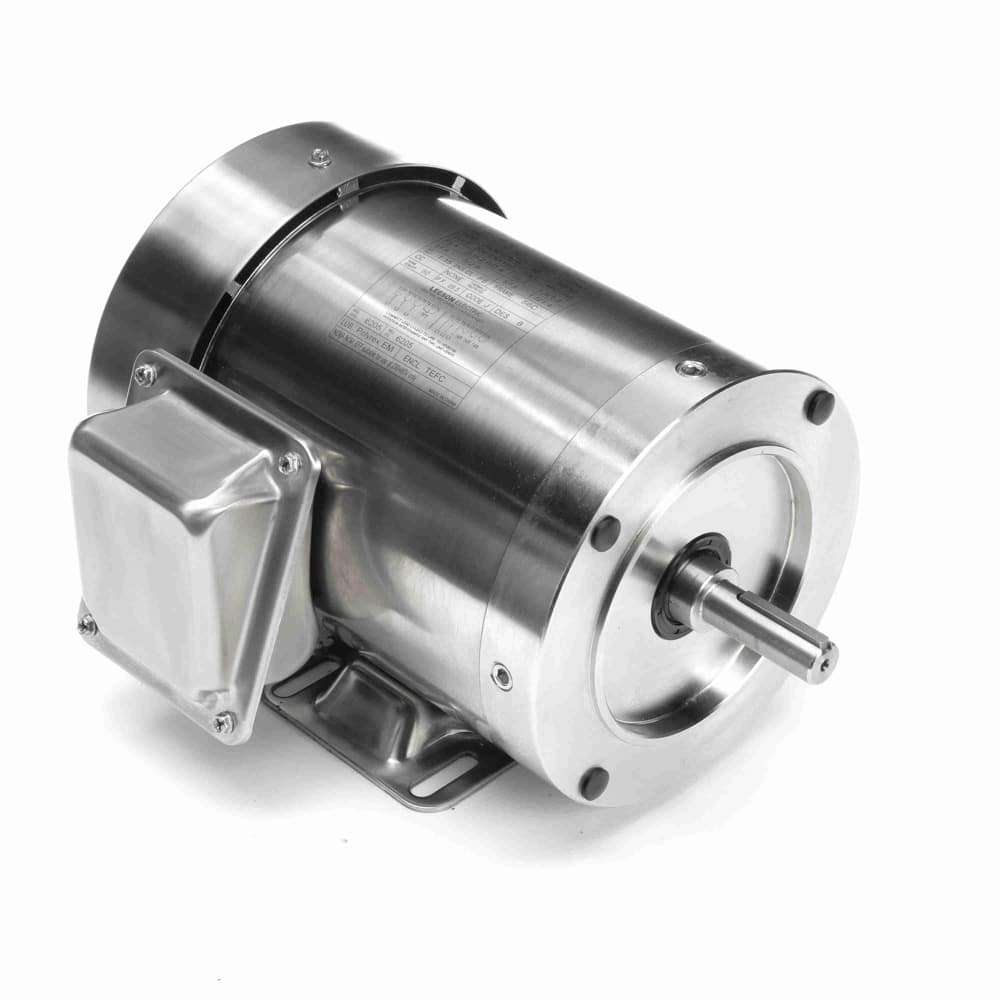

1HP 3PH 56HC 2P TEFC 3450 230/460V WB SS
Mfr # 191209.00 | Wright’s # LSN 191209.00
1HP Stainless Steel Washdown Motor, 3 Phase, 56HC Frame, 3450 & 2850 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Sub-Brand
SST Duck™
Mfr #
191209.00
Wright's #
LSN 191209.00
Country of Origin
CHN
Specifications
C Dim
13.77"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
80
Frame
56HC
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
F
kW
0.75kW
Material
Stainless Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.6/1.3 & 2.4/1.2
Rated Voltage
230/460
Rotation
Reversible
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450 & 2850
Starting Method
Description
Full stainless steel exterior promotes resistance to water and chemical corrosion.
Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Insulation systems deliver superior protection against voltage spikes.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
