Leeson
0.33HP 3PH 56C 4P TENV 1740 230/460V NB SS
Mfr # 191202.00 | Wright’s # LSN 191202.00

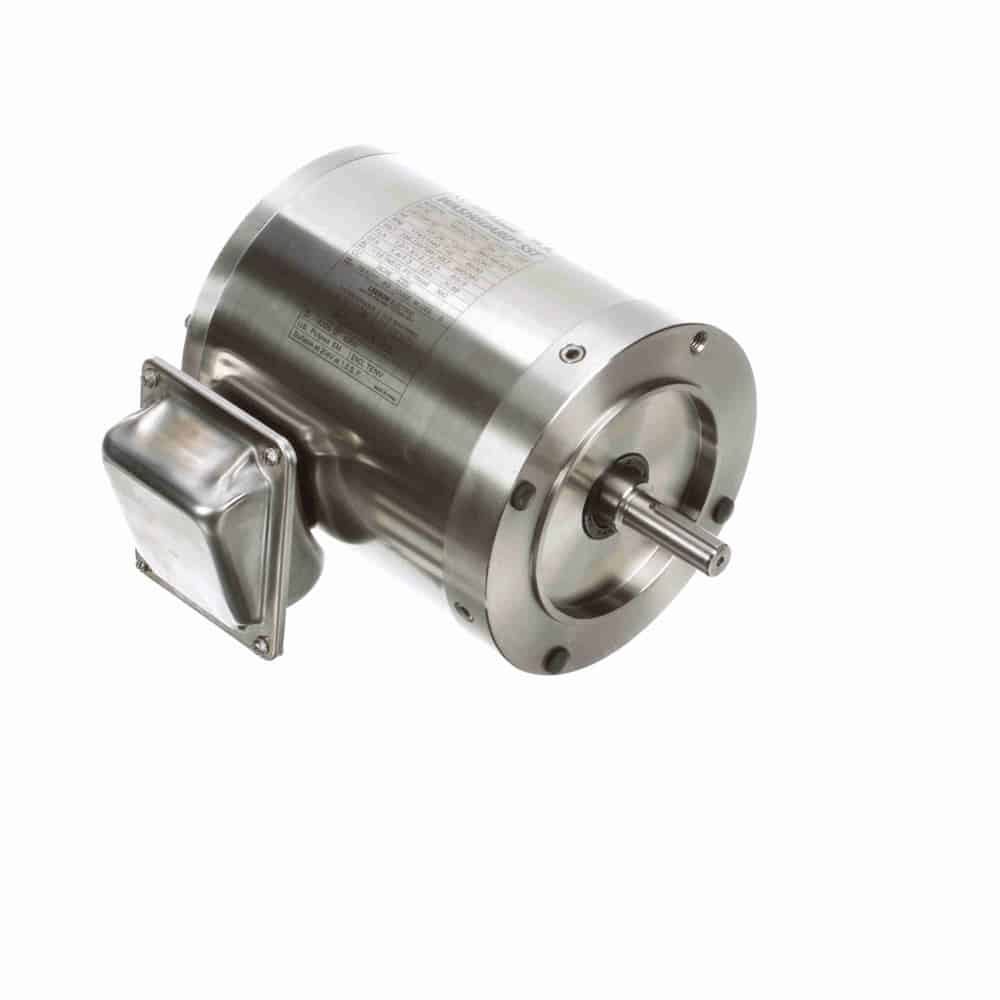

1/3HP Stainless Steel Washdown Motor, 3 Phase, 56C Frame, 1740 & 1440 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Sub-Brand
SST Duck™
Mfr #
191202.00
Wright's #
LSN 191202.00
Country of Origin
CHN
Specifications
C Dim
9.78"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TENV
Full Load Efficiency
78.5
Frame
56C
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
F
kW
0.25kW
Material
Stainless Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
1.3/.65 & 1.2/.60
Rated Voltage
230/460
Rotation
Reversible
RPM
1740
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1740 & 1440
Starting Method
Description
Full stainless steel exterior promotes resistance to water and chemical corrosion.
Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Insulation systems deliver superior protection against voltage spikes.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
