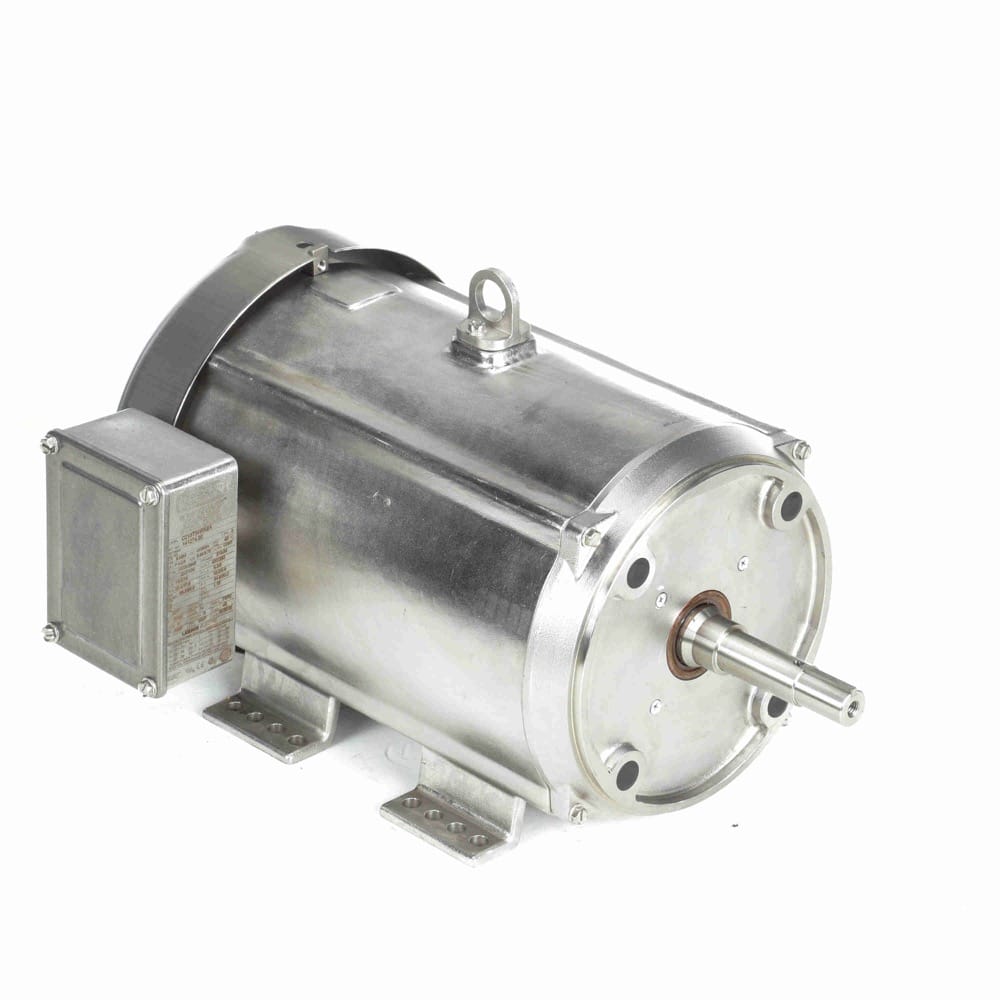

7.50HP 3PH 213JM 2P TEFC 3525 230/460V SS
Mfr # 141274.00 | Wright’s # LSN 141274.00
7-1/2HP Washdown Pump Motor, 3 Phase, 213JM Frame, 3525 & 2945 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Specifications
Description
All exterior components are 300-series stainless steel
All sealing components are Viton® for superior chemical resistance
End shields are O-ring sealed to the frame
Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
Double-sealed bearings are pre-lubricated with moisture-resistant high-temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion
Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
Three phase motors are UL component recognized – file number E57948, guide number PRGY2; Full fact nameplate is laser etched on the motor frame
