Leeson

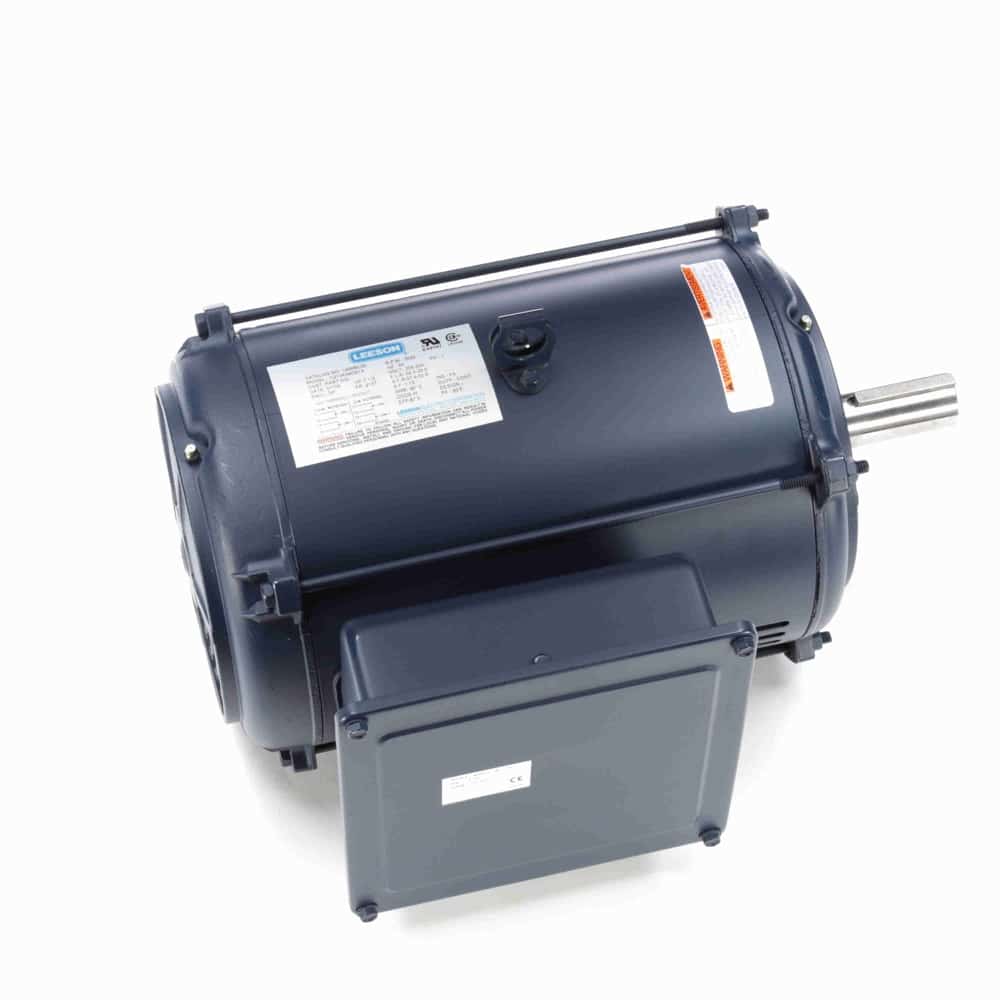

7.50HP 1PH 213T 2P DP 3520 208-230V
Mfr # 140680.00 | Wright’s # LSN 140680.00
7-1/2HP Compressor Motor, 1 Phase, 213T Frame, 3520 RPM, 1 Speed, Capacitor Start Capacitor Run, 208-230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 140680.00
Wright's # LSN 140680.00
Country of Origin MEX
Specifications
C Dim 18.04"
Electrical Type Capacitor Start Capacitor Run
Enclosure DP
Full Load Efficiency 88.5
Frame 213T
Frequency 60 Hz
HP 7.5 HP
HP2 7-1/2 HP
Insulation Class F
kW 5.6kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 32.5-29.5
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 3520
Service Factor 1.15
Shaft Diameter 1.375"
Speed 3520
Starting Method
Description
Double shielded ball bearings
Designed for belted loads
High efficient copper windings
High starting and breakdown torque
Dual rotation
