Leeson

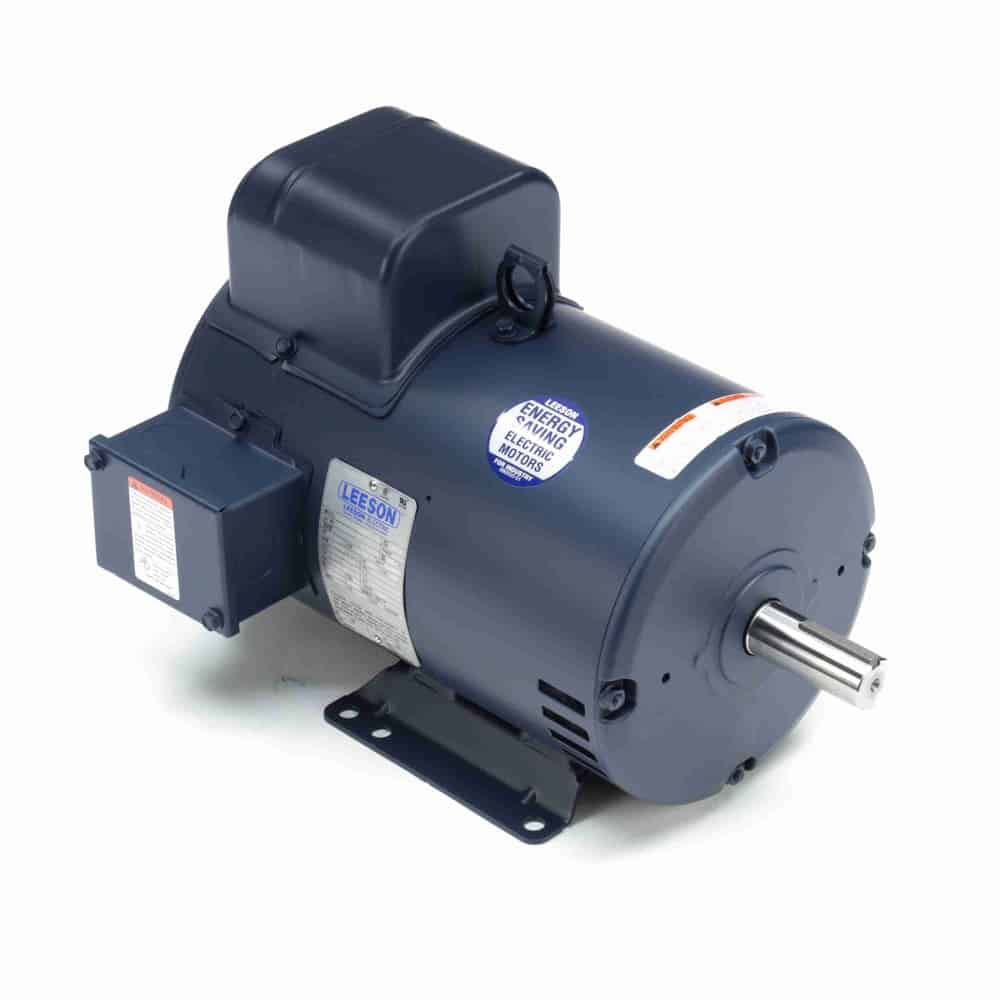

7.50HP 1PH 184T 2P DP 3450 208-230V TS
Mfr # 132044.00 | Wright’s # LSN 132044.00
7-1/2HP Compressor Motor, 1 Phase, 184T Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 208-230V, DP Enclosure, Thermostat Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
132044.00
Wright's #
LSN 132044.00
Country of Origin
MEX
Specifications
C Dim
16.69"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
DP
Full Load Efficiency
82.5
Frame
184T
Frequency
60 Hz
HP
7.5 HP
HP2
7-1/2 HP
Insulation Class
F
kW
5.6kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermostat
Phase
1
Rated Current
34.0-31.0
Rated Voltage
208-230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1.15
Shaft Diameter
1.125"
Speed
3450
Starting Method
Description
Double shielded ball bearings
Designed for belted loads
High starting and breakdown torque
Dual rotation
