Leeson

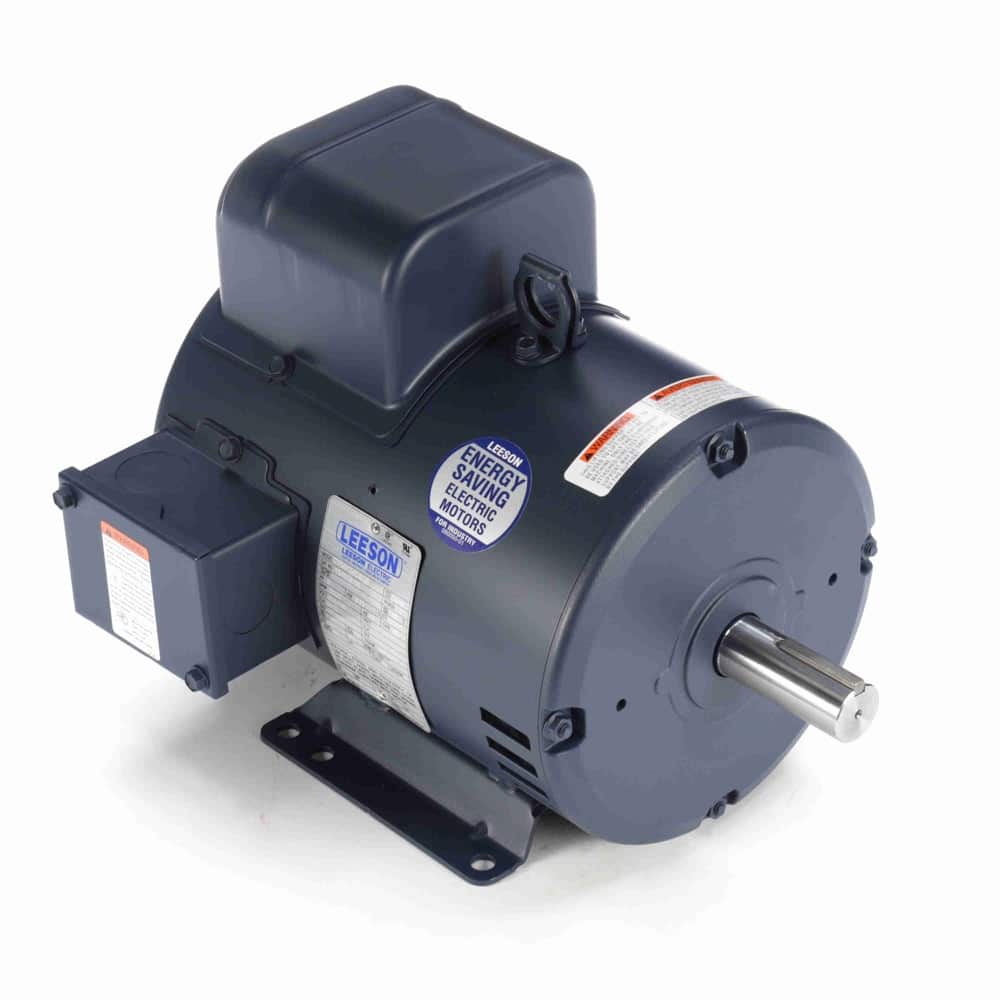

5HP 1PH 184T 2P DP 3500 208-230V
Mfr # 131616.00 | Wright’s # LSN 131616.00
5HP General Purpose Motor, 1 Phase, 184T Frame, 3500 RPM, 1 Speed, Capacitor Start Capacitor Run, 208-230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 131616.00
Wright's # LSN 131616.00
Country of Origin MEX
Specifications
C Dim 14.69"
Electrical Type Capacitor Start Capacitor Run
Enclosure DP
Full Load Efficiency 80
Frame 184T
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class F
kW 3.7kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 2
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 24.0-22.0
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 3500
Service Factor 1.15
Shaft Diameter 1.125"
Speed 3500
Starting Method
Description
Durable rolled steel construction
NEMA design B performance
Double shielded ball bearings
Continuous duty
Thermally protected ratings
UL recognized component listing and CSA certified
