Leeson

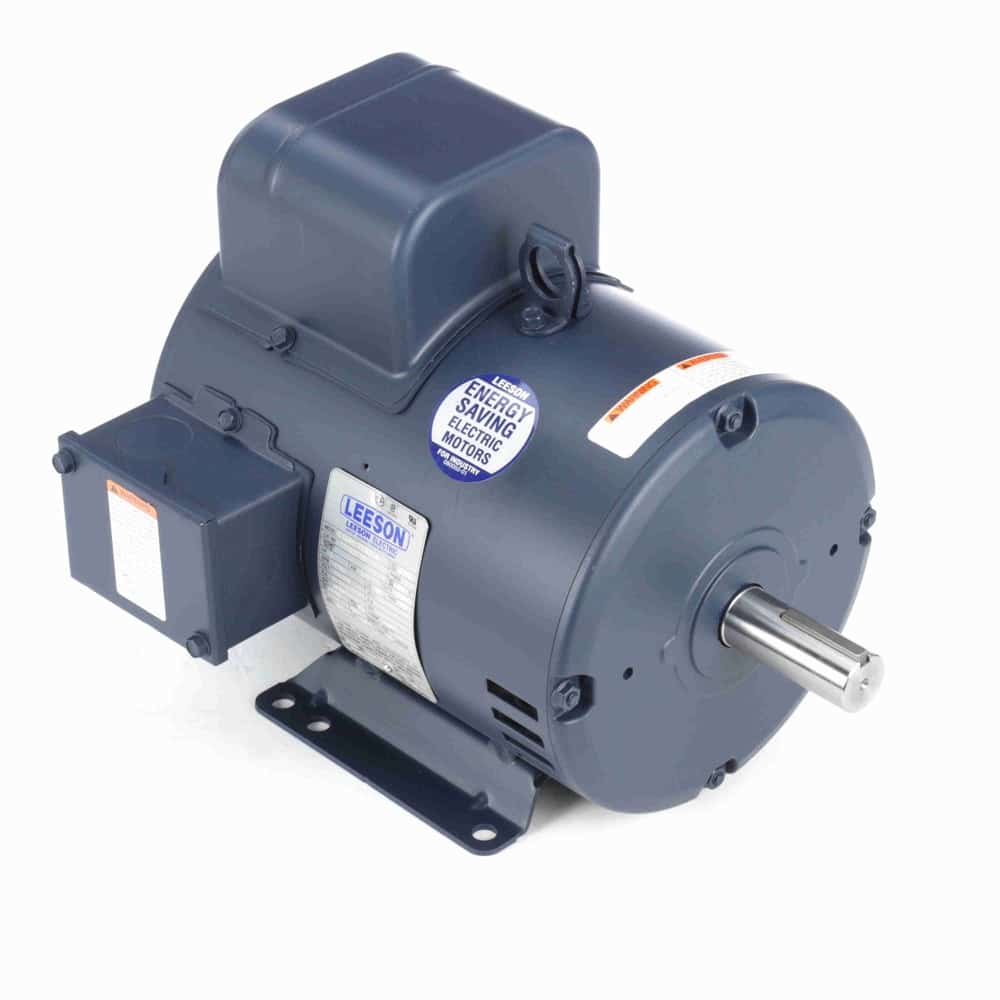

5HP 1PH 184T 4P DP 1740 208-230V
Mfr # 131537.00 | Wright’s # LSN 131537.00
5HP Compressor Motor, 1 Phase, 184T Frame, 1740 RPM, 1 Speed, Capacitor Start Capacitor Run, 208-230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 131537.00
Wright's # LSN 131537.00
Country of Origin MEX
Specifications
C Dim 14.69"
Electrical Type Capacitor Start Capacitor Run
Enclosure DP
Full Load Efficiency 83
Frame 184T
Frequency 60 Hz
HP 5 HP
HP2 5 HP
Insulation Class F
kW 3.7kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 23.0-21.0
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 1740
Service Factor 1.15
Shaft Diameter 1.125"
Speed 1740
Starting Method
Description
Double shielded ball bearings
Designed for belted loads
High starting and breakdown torque
Dual rotation
