Leeson

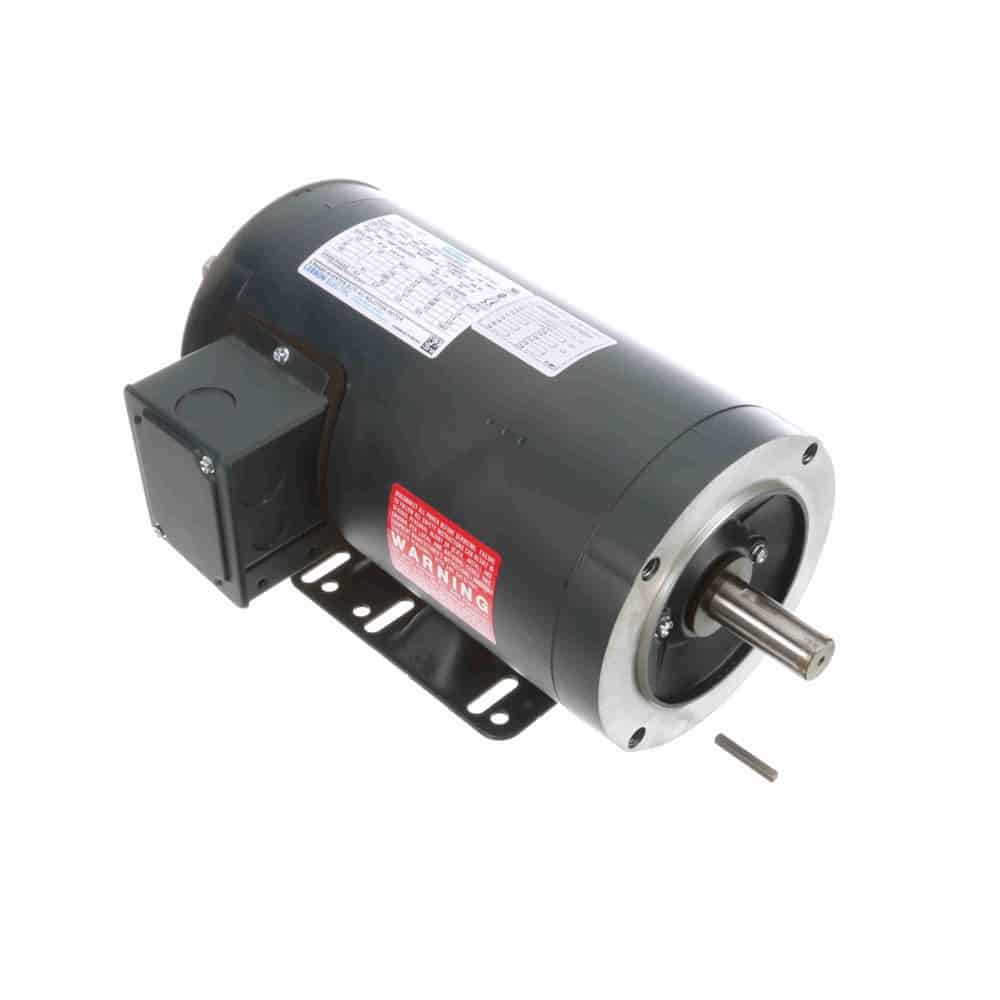

1HP 3PH 145TC 6P TENV 1145 230/460V WB Inv
Mfr # 122130.00 | Wright’s # LSN 122130.00
1HP Inverter Duty Motor, 3 Phase, 145TC Frame, 1145 RPM, 1 Speed, Squirrel Cage Inverter Duty, 230/460V, TENV Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
122130.00
Wright's #
LSN 122130.00
Country of Origin
MEX
Specifications
C Dim
16.04"
Electrical Type
Squirrel Cage Inverter Duty
Enclosure
TENV
Full Load Efficiency
80
Frame
145TC
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
F
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
6
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
3.8/1.9
Rated Voltage
230/460
Rotation
Reversible
RPM
1145
Service Factor
1
Shaft Diameter
0.875"
Speed
1145
Starting Method
Description
MaxGuard® inverter rated insulation system exceeds NEMA MG1 Part 31. No lead lengths restrictions on 460V systems or less (as noted).
Constant torque operation from 0 to base speed on vector drive.
Double-shielded ball bearings provide longer service life.
Normally closed thermostats (one per phase, Class F or H as noted).
