Leeson
2HP 3PH 145JMV 2P TEFC 3500 230/460V
Mfr # 122090.00 | Wright’s # LSN 122090.00

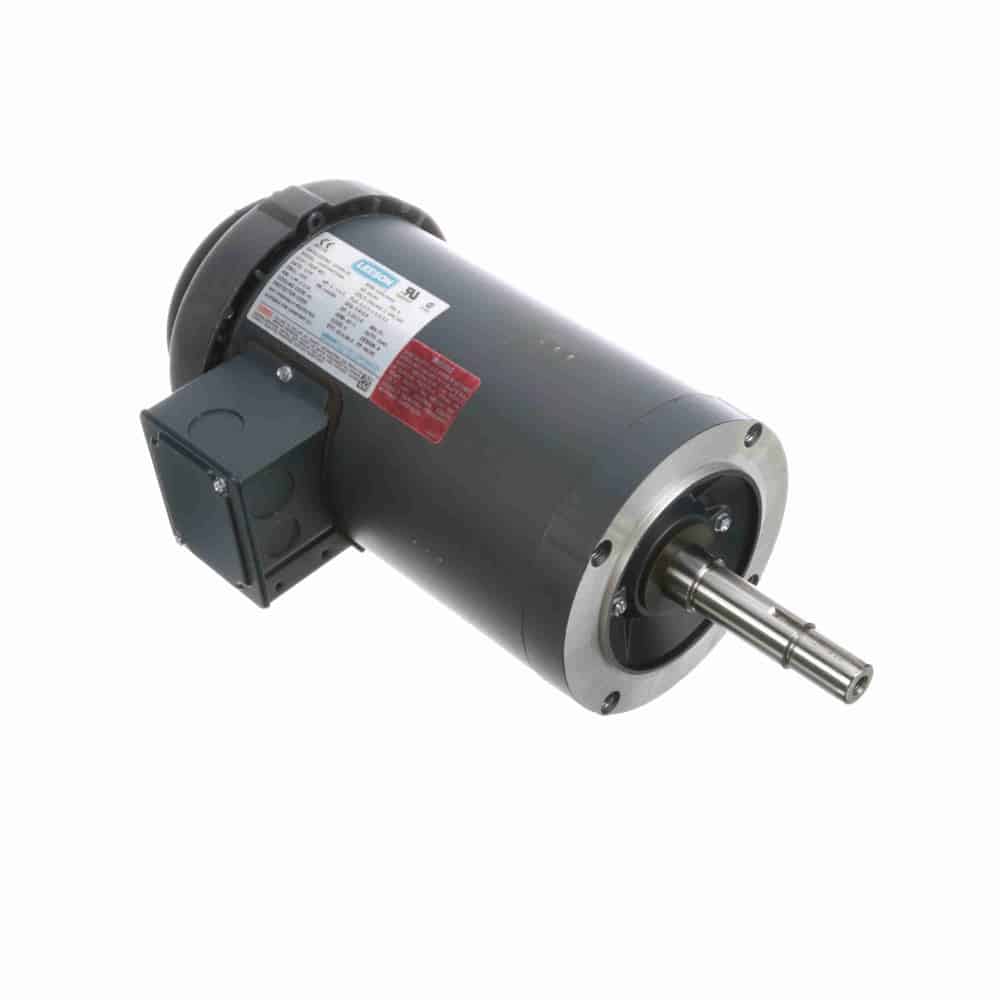

2HP Close-Coupled Pump Motor, 3 Phase, 145JMV Frame, 3500 & 2910 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure
$183.87
Product Information
Brand
Leeson
Mfr #
122090.00
Wright's #
LSN 122090.00
Country of Origin
USA
Specifications
C Dim
17.29"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
TEFC
Full Load Efficiency
85.5
Frame
145JMV
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
F
kW
1.5kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
5/2.5 & 4.6/2.3
Rated Voltage
230/460
Rotation
Reversible
RPM
3500
Service Factor
1.15
Shaft Diameter
0.875"
Speed
3500 & 2910
Starting Method
