Leeson
1.50HP 1PH 145JM 4P DP 1740 115/230V
Mfr # 120994.00 | Wright’s # LSN 120994.00

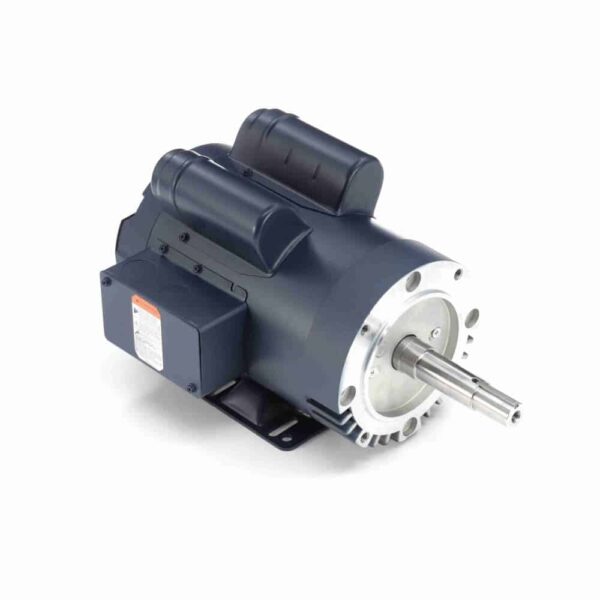

1-1/2HP Close-Coupled Pump Motor, 1 Phase, 145JM Frame, 1740 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, DP Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
120994.00
Wright's #
LSN 120994.00
Country of Origin
USA
Specifications
C Dim
14.91"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
DP
Full Load Efficiency
79
Frame
145JM
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
17.2/8.6
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1740
Service Factor
1.15
Shaft Diameter
0.875"
Speed
1740
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Suitable for use on a VFD, 10:1 variable torque and 2:1 constant torque.
Class F insulation(as noted) protects motor for a maximum temperature rating.
1.15 service factor on sinewave, 1.0 service factor on IGBT power.
Double sealed ball bearings mechanically locked on shaft end.
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
