Leeson

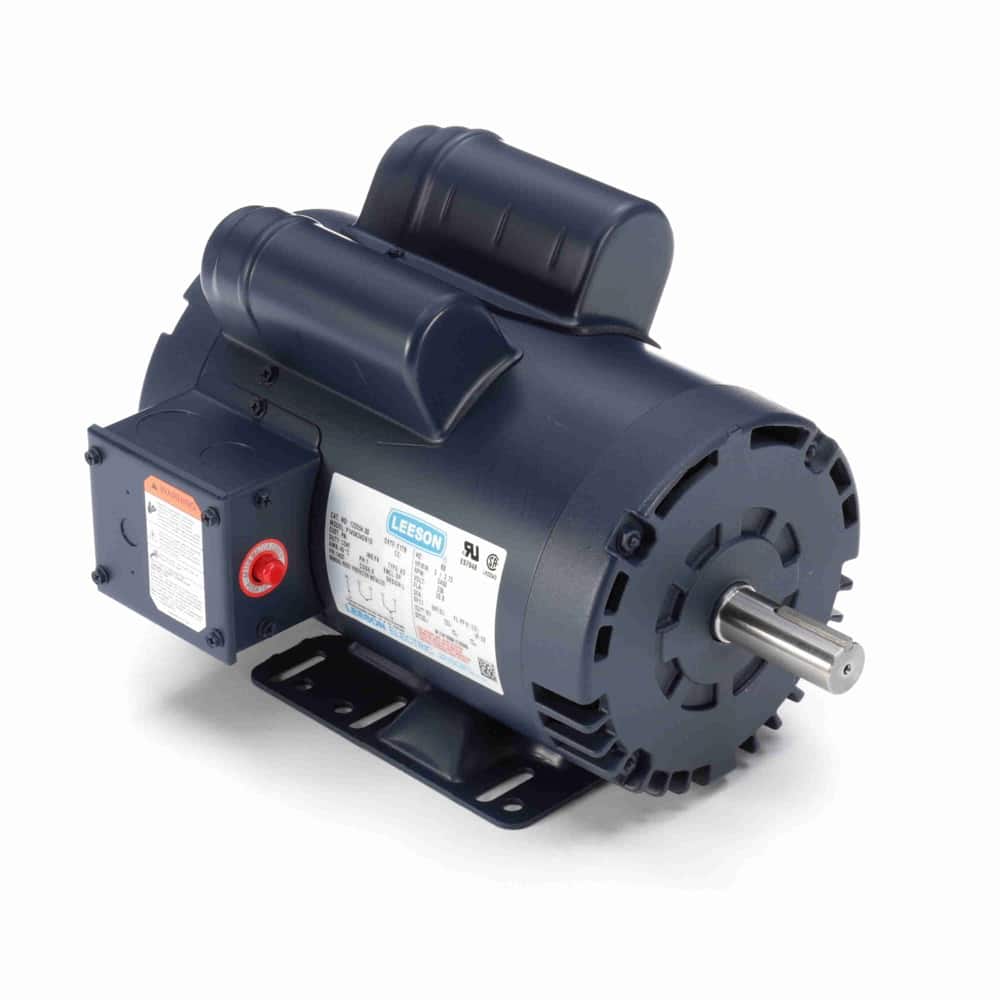

5HP 1PH 145T 2P DP 3450 230V MOL
Mfr # 120554.00 | Wright’s # LSN 120554.00
5HP Compressor Motor, 1 Phase, 145T Frame, 3450 RPM, 1 Speed, Capacitor Start Capacitor Run, 230V, DP Enclosure, Manual Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
120554.00
Wright's #
LSN 120554.00
Country of Origin
USA
Specifications
C Dim
13.2"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
DP
Full Load Efficiency
82.5
Frame
145T
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
F
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Manual
Phase
1
Rated Current
20.8
Rated Voltage
230
Rotation
Selective Clockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.875"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
High starting torque on start-up, to achieve a higher starting load required in air compressor applications.
Capacitor start or capacitor run for low-amp, high-efficiency, as noted.
Heavy-duty construction ensures motor durability.
