Leeson
2HP 3PH 56C 4P TEFC 1745 230/460V TS NB
Mfr # 119471.00 | Wright’s # LSN 119471.00

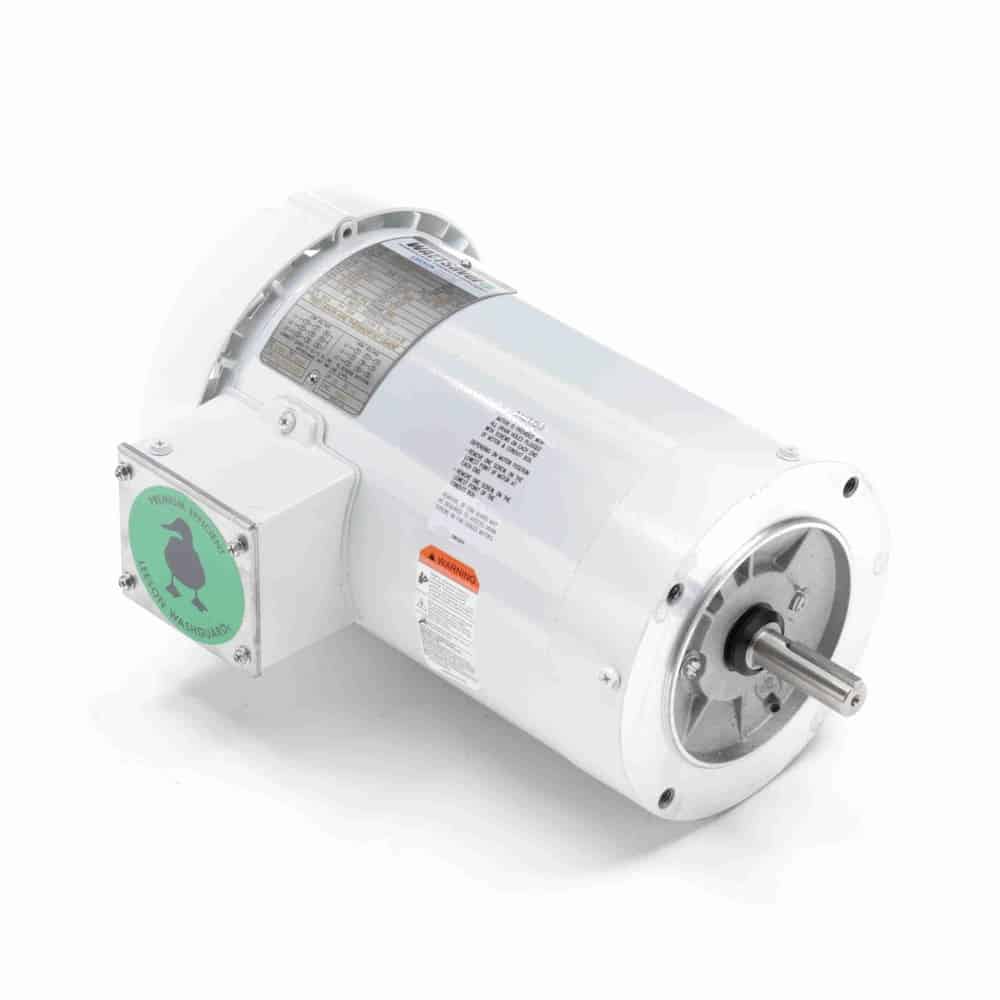

2HP Painted Epoxy Coated Washdown Motor, 3 Phase, 56C Frame, 1745 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure, Thermostat Overload Protection
$850.97
Product Information
Brand Leeson
Mfr # 119471.00
Wright's # LSN 119471.00
Country of Origin USA
Specifications
C Dim 13.87"
Electrical Type Squirrel Cage Induction Run
Enclosure TEFC
Full Load Efficiency 86.5
Frame 56C
Frequency 60 Hz
HP 2 HP
HP2 2 HP
Insulation Class F
kW 1.5kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Round
Number of Poles 4
Number of Speeds 1
Overload Protection Thermostat
Phase 3
Rated Current 5.8/2.9
Rated Voltage 230/460
Rotation Reversible
RPM 1745
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1745
Starting Method
Description
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
