Leeson
1.50HP 3PH 56C 4P TEFC 1750 230/460V TS NB
Mfr # 119469.00 | Wright’s # LSN 119469.00

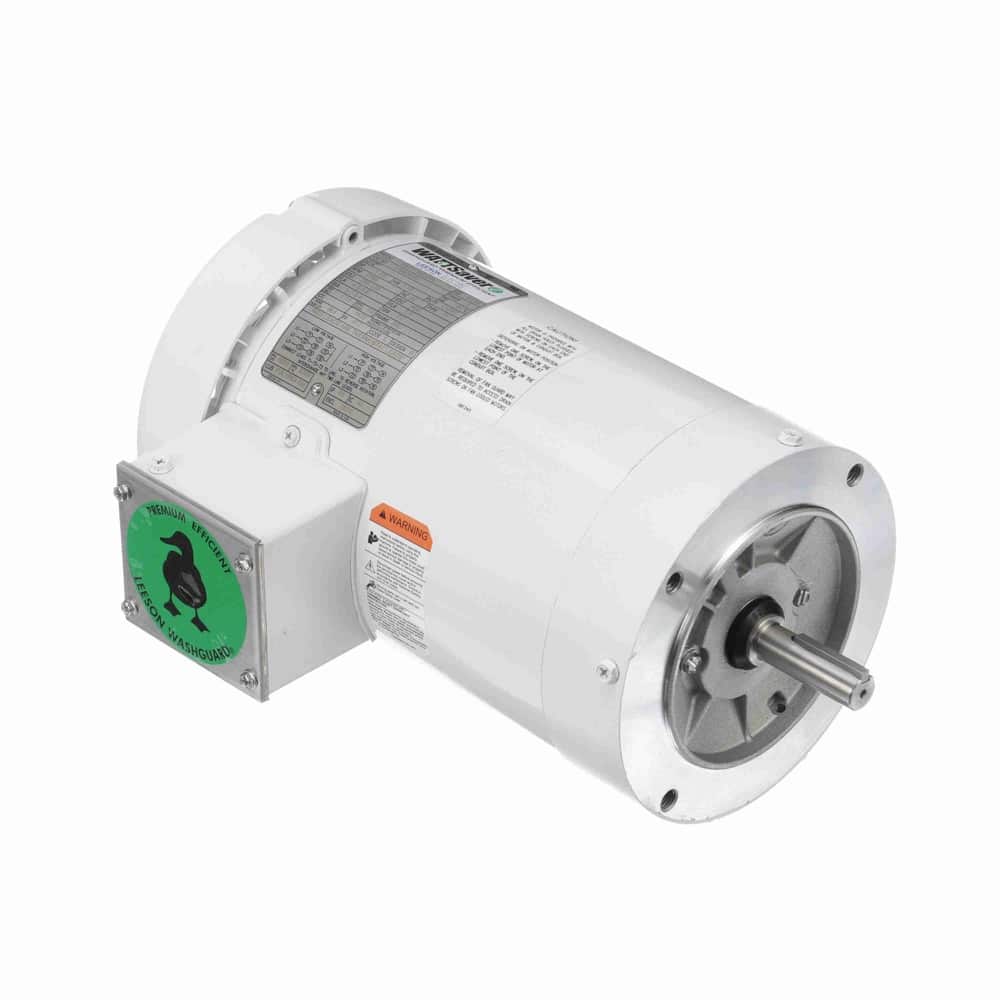

1-1/2HP Painted Epoxy Coated Washdown Motor, 3 Phase, 56C Frame, 1750 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure, Thermostat Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
119469.00
Wright's #
LSN 119469.00
Country of Origin
USA
Specifications
C Dim
13.37"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
86.5
Frame
56C
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
4.8/2.4
Rated Voltage
230/460
Rotation
Reversible
RPM
1750
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1750
Starting Method
Description
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
