Leeson

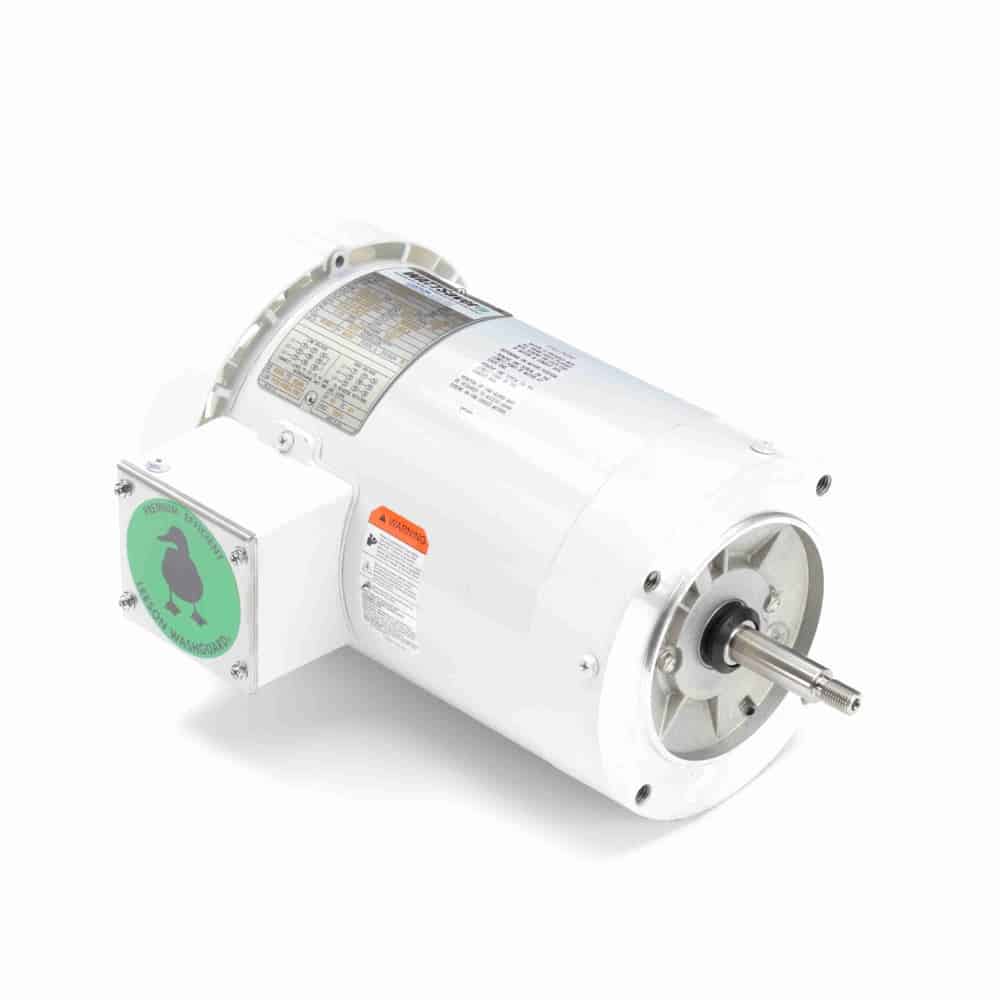

3HP 3PH 56J 2P TEFC 3490 230/460V
Mfr # 119462.00 | Wright’s # LSN 119462.00
3HP Jet Pump Motor, 3 Phase, 56J Frame, 3490 & 2890 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
119462.00
Wright's #
LSN 119462.00
Country of Origin
USA
Specifications
C Dim
14.37"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
86.5
Frame
56J
Frequency
60 Hz
HP
3 HP
HP2
3 HP
Insulation Class
F
kW
2.2kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
8/4 & 6.8/3.4
Rated Voltage
230/460
Rotation
Reversible
RPM
3490
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3490 & 2890
Starting Method
Description
USDA-approved epoxy painted motors
Stainless steel Shaft
NEMA Jet Pump Motors
AC washdown motors
Rigid base and C face mount types
BISSC approved designs
Double lip contact seals and v-ring seals used for shaft seals
UL recognized and CSA certified
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
