Leeson

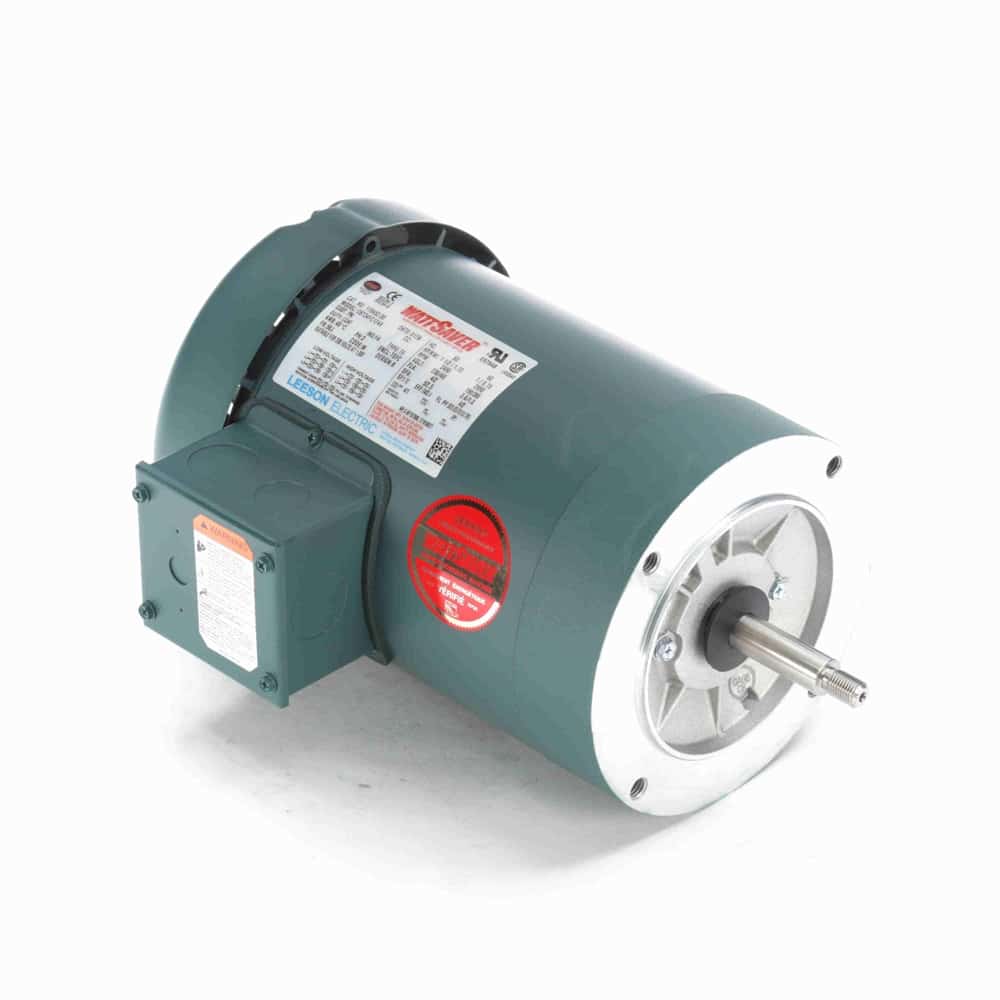

1.50HP 3PH 56J 2P TEFC 3490 230/460V
Mfr # 119453.00 | Wright’s # LSN 119453.00
1-1/2HP Jet Pump Motor, 3 Phase, 56J Frame, 3490 & 2890 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, TEFC Enclosure
$438.48
Product Information
Brand
Leeson
Mfr #
119453.00
Wright's #
LSN 119453.00
Country of Origin
USA
Specifications
C Dim
12.66"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
TEFC
Full Load Efficiency
84
Frame
56J
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
4/2 & 3.6/1.8
Rated Voltage
230/460
Rotation
Reversible
RPM
3490
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3490 & 2890
Starting Method
Description
NEMA® 56 C face mounting flange
Threaded shafts made of 303 grade stainless steel
CCW rotation facing lead end
Double sealed bearings on shaft end
Terminal board with quick connects
Locked shaft end bearings
