Leeson
0.75HP 3PH 56J 2P TEFC 3450 230/460V
Mfr # 116779.00 | Wright’s # LSN 116779.00

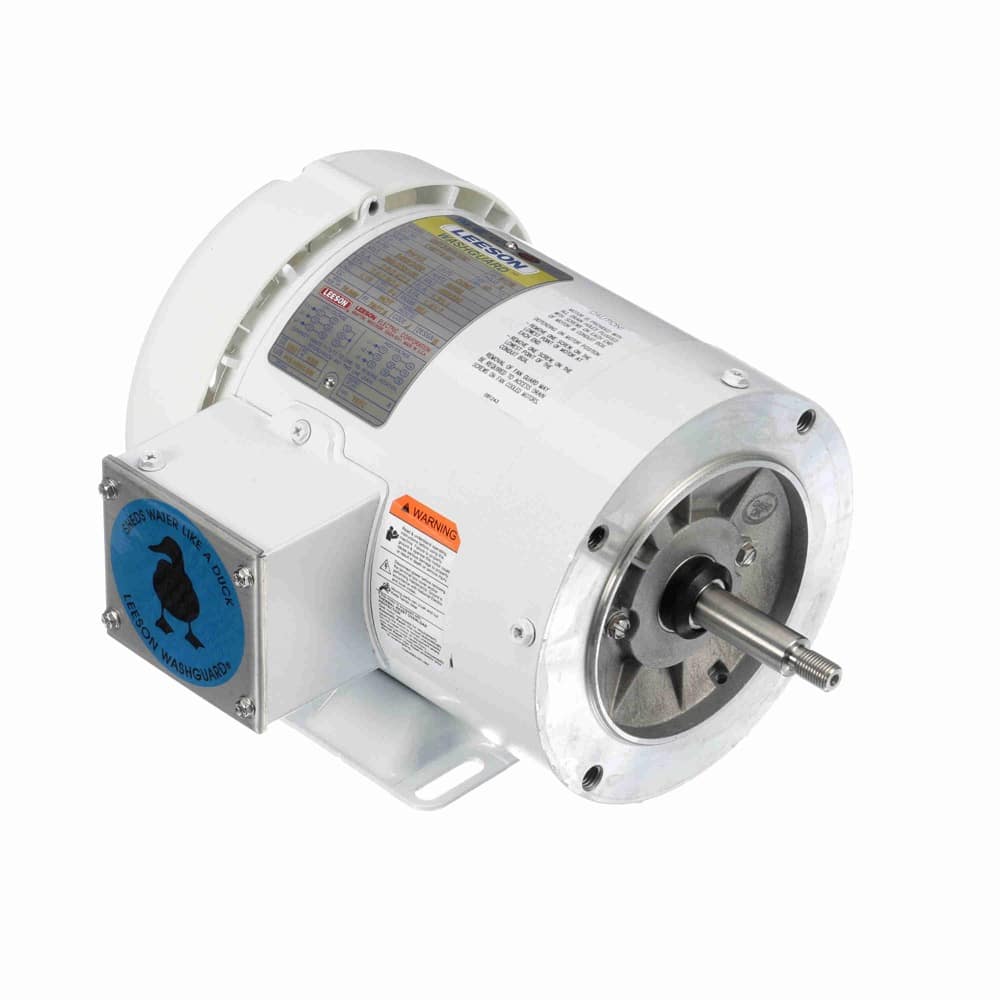

3/4HP Jet Pump Motor, 3 Phase, 56J Frame, 3450 & 2850 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
116779.00
Wright's #
LSN 116779.00
Country of Origin
USA
Specifications
C Dim
11.37"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
75.5
Frame
56J
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
F
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.4/1.2 & 2.2/1.1
Rated Voltage
230/460
Rotation
Reversible
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450 & 2850
Starting Method
Description
USDA-approved epoxy painted motors
NEMA motors
Three phase
BISSC approved
Double lip contact seals and v-ring seals used for shaft seals
Full fact nameplate is laser etched on the motor frame
UL recognized and CSA certified
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
