Leeson

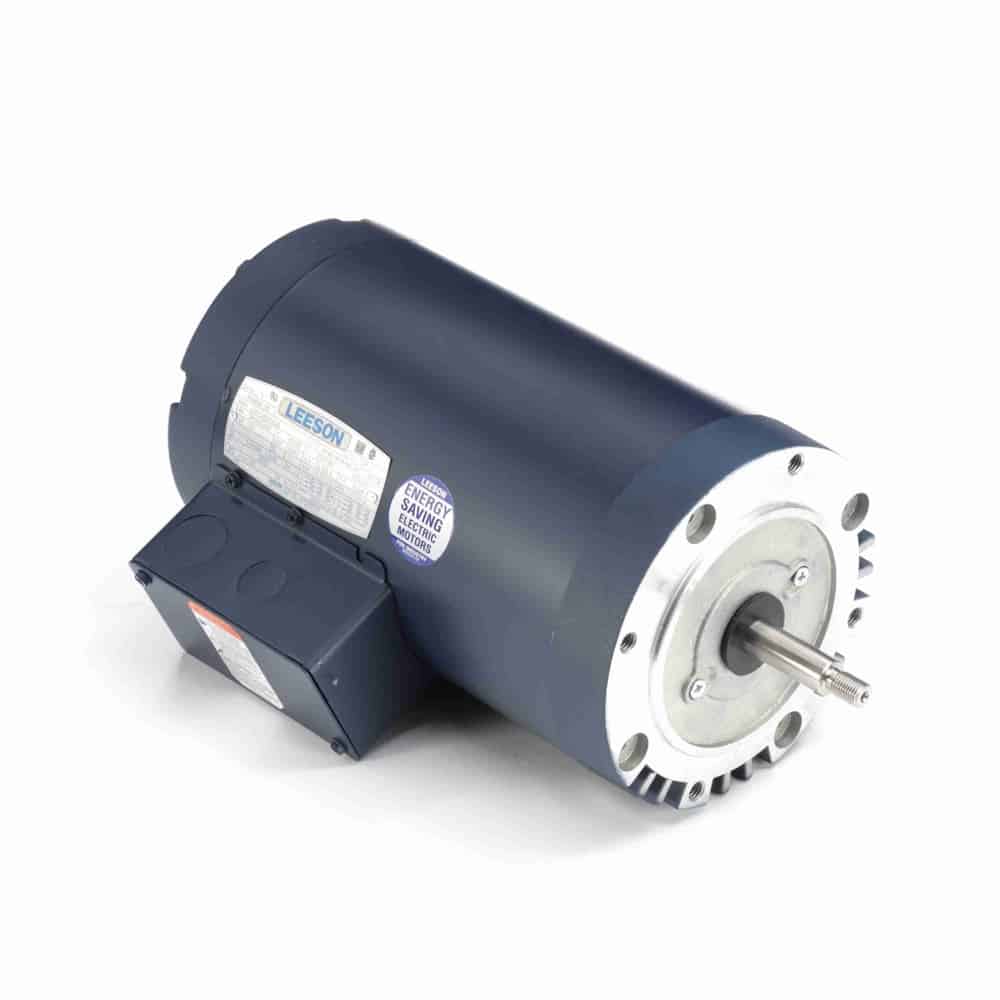

5HP 3PH 56J 2P DP 3490 230/460V
Mfr # 116698.00 | Wright’s # LSN 116698.00
5HP Jet Pump Motor, 3 Phase, 56J Frame, 3490 & 2890 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, DP Enclosure
$505.01
Product Information
Brand
Leeson
Mfr #
116698.00
Wright's #
LSN 116698.00
Country of Origin
USA
Specifications
C Dim
13.68"
Electrical Type
Squirrel Cage Induction Run
Enclosure
DP
Full Load Efficiency
85.5
Frame
56J
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
F
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
2
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
12.4/6.2 & 9.4/4.7
Rated Voltage
230/460
Rotation
Reversible
RPM
3490
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3490 & 2890
Starting Method
Description
NEMA 56 C face mounting flange
Threaded shafts made of 303 grade stainless steel
Reversible rotation
Double sealed bearings on shaft end
Locked shaft end bearings
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
