Leeson
0.50HP 3PH 56C 4P TEFC 1725 230/460V NB
Mfr # 116644.00 | Wright’s # LSN 116644.00

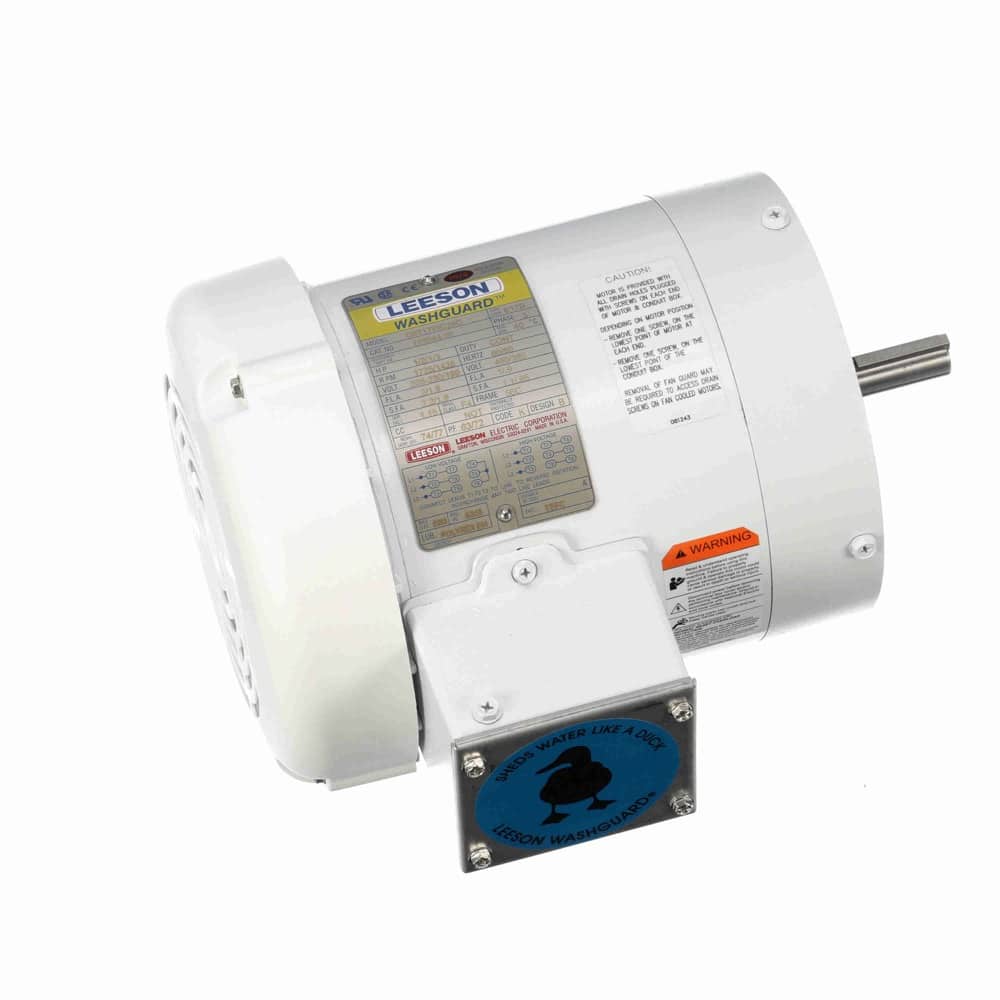

1/2HP Painted Epoxy Coated Washdown Motor, 3 Phase, 56C Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Induction Run, 230/460V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
116644.00
Wright's #
LSN 116644.00
Country of Origin
USA
Specifications
C Dim
10.87"
Electrical Type
Squirrel Cage Induction Run
Enclosure
TEFC
Full Load Efficiency
74
Frame
56C
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2/1 & 1.8/.9
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
Description
USDA-approved white epoxy finish ensures resistance and protection against caustic cleaning solutions.
Sealed bearings shut out contaminants that lead to bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Cast, white epoxy conduit boxes house electrical wiring.
Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.
