Leeson

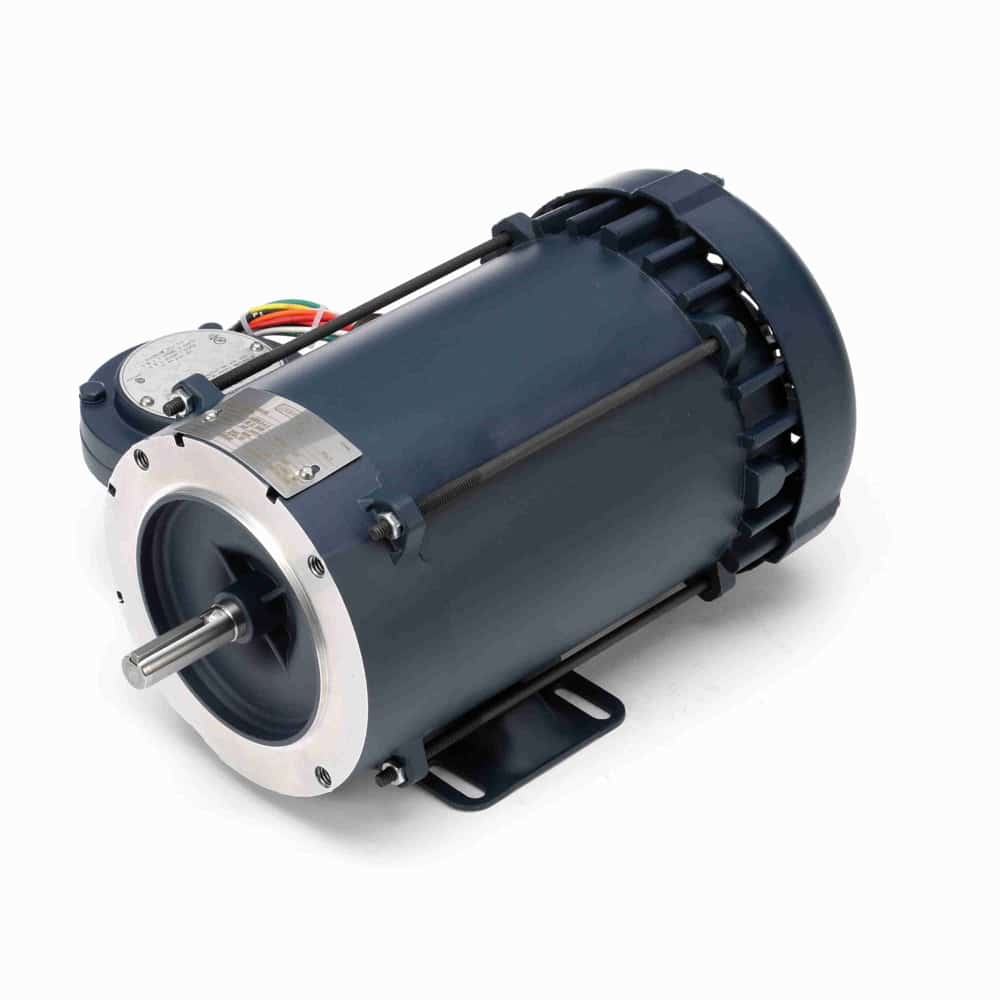

0.75HP 1PH 56C 2P EXP TEFC 3450 115/208-230V AOL WB
Mfr # 116611.00 | Wright’s # LSN 116611.00
3/4HP Explosion Proof Motor, 1 Phase, 56C Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/208-230V, EXP TEFC Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
116611.00
Wright's #
LSN 116611.00
Country of Origin
MEX
Specifications
C Dim
13.94"
Electrical Type
Capacitor Start Induction Run
Enclosure
EXP TEFC
Full Load Efficiency
66
Frame
56C
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
10.6/5.3-5.3
Rated Voltage
115/208-230
Rotation
Selective Counterclockwise
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Meets T3B temperature code with a maximum surface temperature of 329° F.
Permanently lubricated, sealed bearings extend the lifetime of the motor.
140 frame motor and below include explosion proof conduit box, shipped loose.
