Leeson

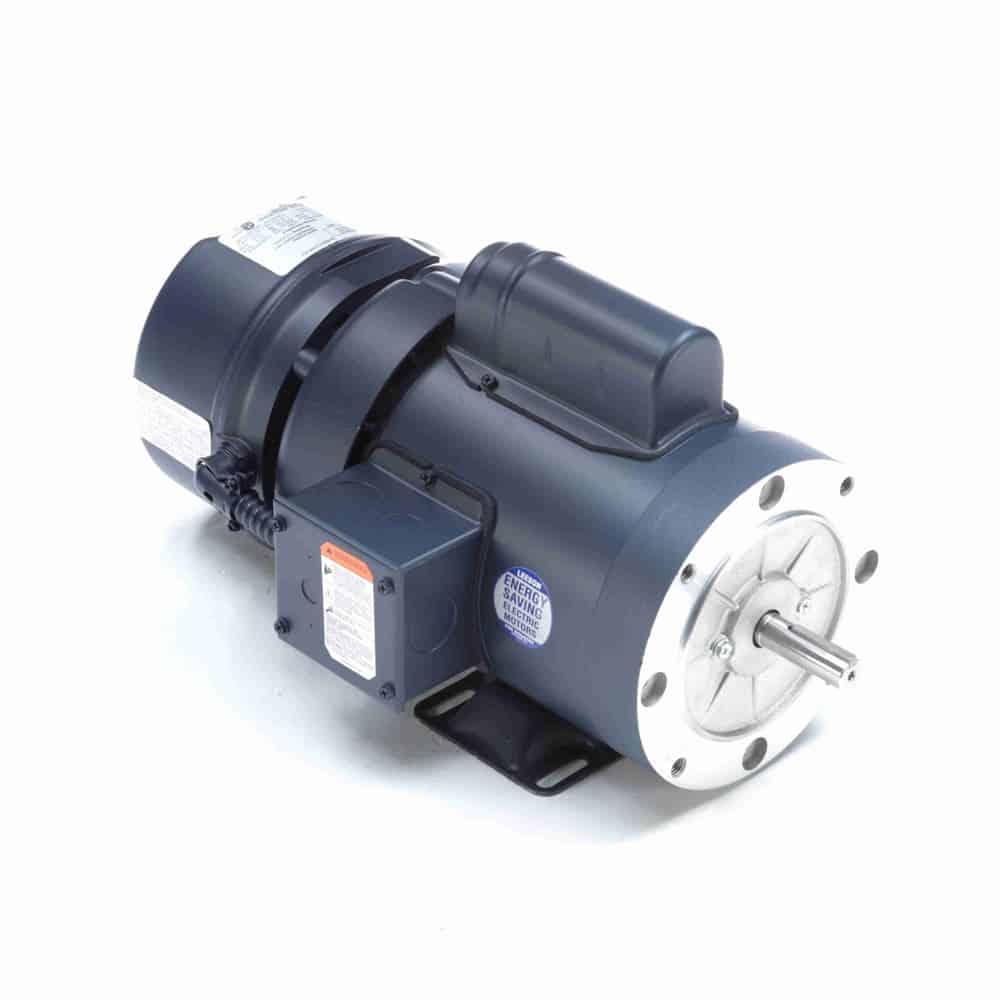

0.75HP 1PH 56C 4P TEFC 1725 115/230V WB Brake
Mfr # 114167.00 | Wright’s # LSN 114167.00
3/4HP Brake Motor, 1 Phase, 56C Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # 114167.00
Wright's # LSN 114167.00
Country of Origin USA
Specifications
C Dim 16.23"
Electrical Type Capacitor Start Induction Run
Enclosure TEFC
Full Load Efficiency 70
Frame 56C
Frequency 60 Hz
HP 0.75 HP
HP2 3/4 HP
Insulation Class B
kW 0.56kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 10.8/5.4
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725
Starting Method
Description
Fail-safe positive stop and holding brakes
Load stops automatically when power is turned off
Manual brake release designs
Dual voltage brake coils
Single phase motor
Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
