Leeson
2HP 3PH 56H 2P DP 3450 208-230/460V AOL
Mfr # 113897.00 | Wright’s # LSN 113897.00

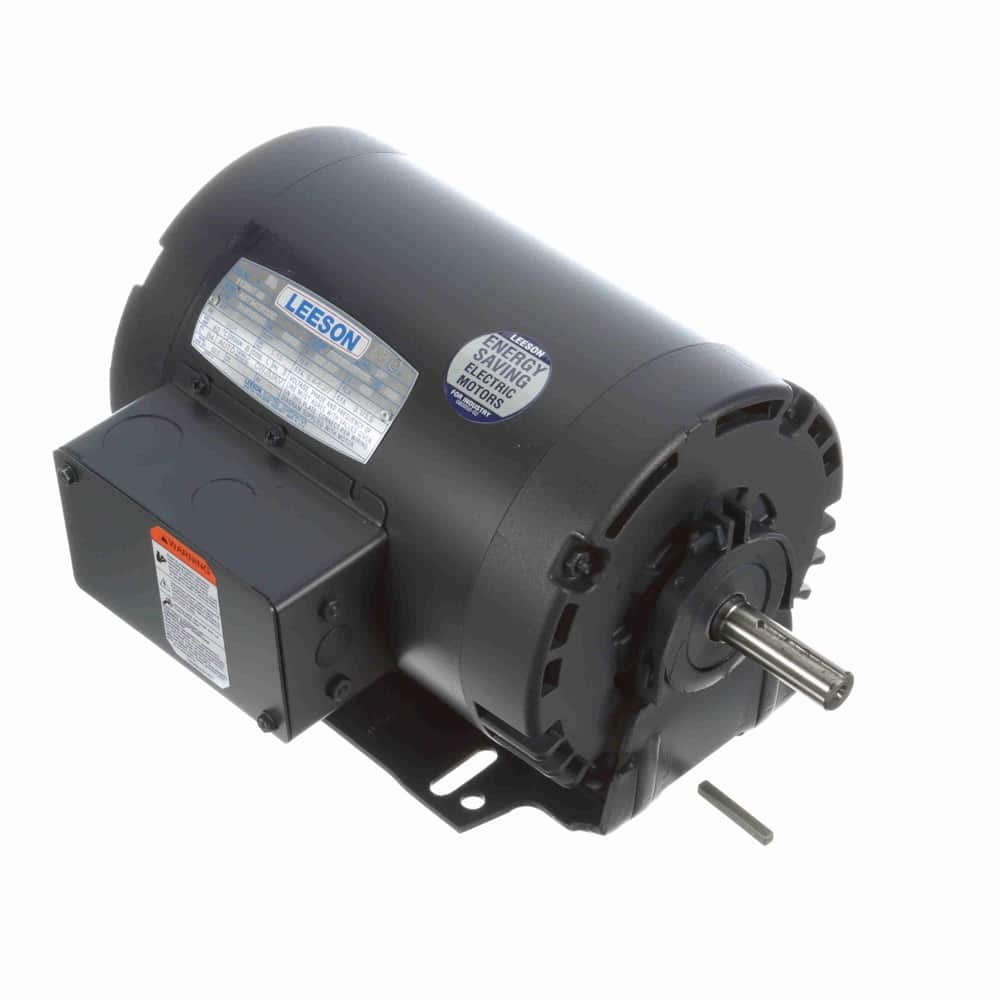

2HP General Purpose Motor, 3 Phase, 56H Frame, 3450 & 2850 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, DP Enclosure, Automatic Overload Protection
$178.89
Product Information
Brand
Leeson
Mfr #
113897.00
Wright's #
LSN 113897.00
Country of Origin
USA
Specifications
C Dim
12.32"
Electrical Type
Squirrel Cage Induction Run
Enclosure
DP
Full Load Efficiency
82.5
Frame
56H
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
B
kW
1.5kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
5.8-5.6/2.8 & 6.6/3.3
Rated Voltage
208-230/460
Rotation
Reversible
RPM
3450
Service Factor
1.15
Shaft Diameter
0.625"
Speed
3450 & 2850
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
